12.8V 100AH LITHIUM BATTERY VICTRON

12.8V 100AH LITHIUM BATTERY VICTRON – Premium Smart LiFePO4 Energy Storage

The 12.8V 100AH LITHIUM BATTERY VICTRON (Victron Energy Lithium Battery Smart 12.8V/100Ah, SKU: BAT512110610) is a high-performance Lithium Iron Phosphate ( $\text{LiFePO}_4$ ) battery engineered for demanding off-grid, marine, automotive, and industrial power storage applications. Delivering $1.28\text{ kWh}$ of nominal energy capacity, this smart battery offers superior round-trip efficiency ( $92\%$ ), extended cycle life, and significant weight savings over conventional lead-acid batteries.

Equipped with integrated cell balancing and built-in Bluetooth connectivity, the 12.8V 100AH LITHIUM BATTERY VICTRON allows real-time monitoring of cell voltages and temperatures directly through the VictronConnect mobile app. Designed to connect to an external Victron Battery Management System (BMS), it features pre-wired M8 circular connectors that relay critical cell data to safeguard the battery against over-discharge, over-charging, and thermal overload.

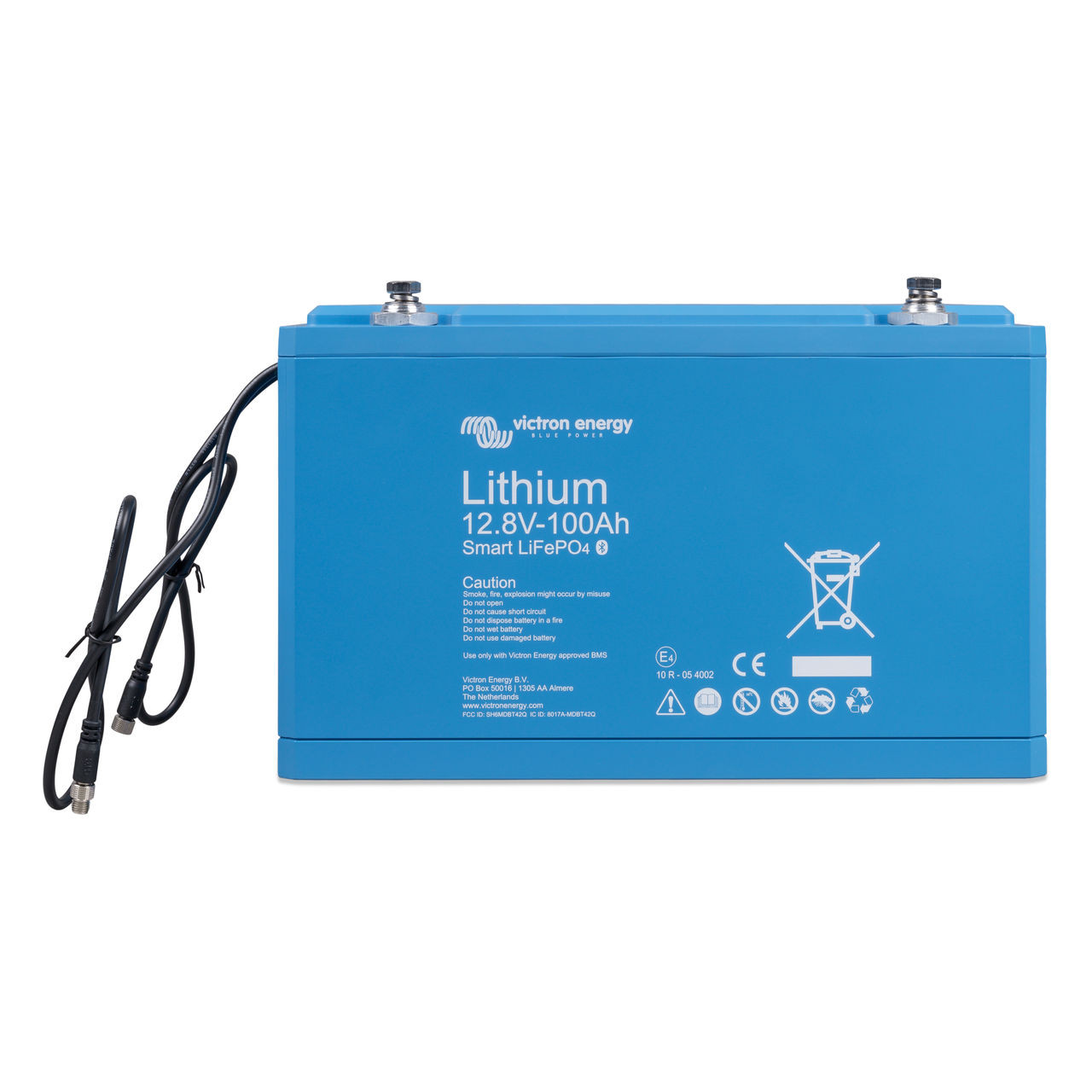

As shown in the product image, the battery is encased in a signature blue Victron Energy housing fitted with M8 threaded terminal posts, side output signal cables for BMS daisy-chaining, and clear product certification marks.

Key Features of the 12.8V 100AH LITHIUM BATTERY VICTRON

Integrated Bluetooth Smart Monitoring: Wirelessly broadcasts individual cell voltages, temperature status, and alarm warnings to smartphone or tablet devices via VictronConnect.
High-Efficiency $\text{LiFePO}_4$ Chemistry: Delivers exceptional $92\%$ round-trip energy efficiency and robust thermal stability.
Exceptional Cycle Life: Provides up to 2,500 cycles at $80\%$ Depth of Discharge (DoD), 3,000 cycles at $70\%$ DoD, and up to 5,000 cycles at $50\%$ DoD.
External BMS Protection: Interfaces seamlessly with Victron BMS units (such as VE.Bus BMS, Smart BMS 12/200, or Lynx Smart BMS) to protect cells from over/under-voltage and extreme temperatures.
Versatile Bank Configurations: Supports series, parallel, or series/parallel bank wiring for 12V, 24V, or 48V power systems.
Compact & Lightweight Design: Saves up to $70\%$ in weight and volume compared to equivalent lead-acid/AGM battery banks.

Common Applications and Practical Usage

The energy density and rugged construction of the 12.8V 100AH LITHIUM BATTERY VICTRON make it the power standard for mobile and stationary energy storage:

Marine & Yacht Electrical Systems: Powers onboard house loads, navigation electronics, and refrigeration without risking premature sulfation or capacity degradation.
Campervans, RVs, & Overland Vehicles: Serves as a lightweight auxiliary house battery for off-grid living, supporting fast-charging from alternators or solar charge controllers.
Off-Grid Solar & Wind Systems: Provides reliable energy storage for remote cabins, telecommunication nodes, and off-grid microgrids.

Technical Specifications

The primary operational, physical, and electrical properties for the 12.8V 100AH LITHIUM BATTERY VICTRON are detailed below:

Parameter Specification	Technical Details & Operational Values
Component Classification	Smart Lithium Iron Phosphate ( $\text{LiFePO}_4$ ) Battery
Primary Target Keyword	12.8V 100AH LITHIUM BATTERY VICTRON
Manufacturer / SKU	Victron Energy / `BAT512110610`
Nominal Voltage / Capacity	$12.8\text{ V}$ / $100\text{ Ah}$ ( $1,280\text{ Wh}$ energy)
Wireless Communication	Integrated Bluetooth Smart
Max Continuous Discharge	$200\text{ A}$ (Recommended charge current: $\le 50\text{ A}$ )
Charge Voltage Range	$14.0\text{ V} - 14.4\text{ V}$ ( $14.2\text{ V}$ recommended; Float $13.5\text{ V}$ )
BMS Communication Cable	Male + Female cable with M8 circular connector ( $50\text{ cm}$ )
Power Connections	Threaded Insert M8 Terminals
Dimensions ( $H \times W \times D$ )	$197\text{ mm} \times 321\text{ mm} \times 152\text{ mm}$ ( $7.8 \times 12.6 \times 6.0\text{ in}$ )
Weight	Approx. $14.0\text{ kg}$ ( $30.8\text{ lbs}$ )
Operating Temperature	Discharge: $-20^\circ\text{C to }+50^\circ\text{C}$ Charge: $+5^\circ\text{C to }+50^\circ\text{C}$
Protection Rating	IP22 (Can be mounted upright or on its side)

Installation Guidelines and Best Practices

CRITICAL MANDATE: Must be operated with an external Victron Energy BMS unit. Direct operation without a BMS will void warranty and can permanently damage battery cells under fault conditions.

Low-Temperature Charging Protection: Never charge $\text{LiFePO}_4$ batteries at temperatures below $0^\circ\text{C}$ without BMS temperature control active.

Terminal Fastening: Torque M8 terminal bolts to $10\text{ N}\cdot\text{m}$ using insulated tools to ensure solid electrical contact and prevent terminal overheating.

To review official product documentation and international battery safety certifications, consult the official Victron Energy Smart Lithium Battery Datasheet Directory.

To evaluate real-time regional warehouse stock availability or request commercial quotes for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
