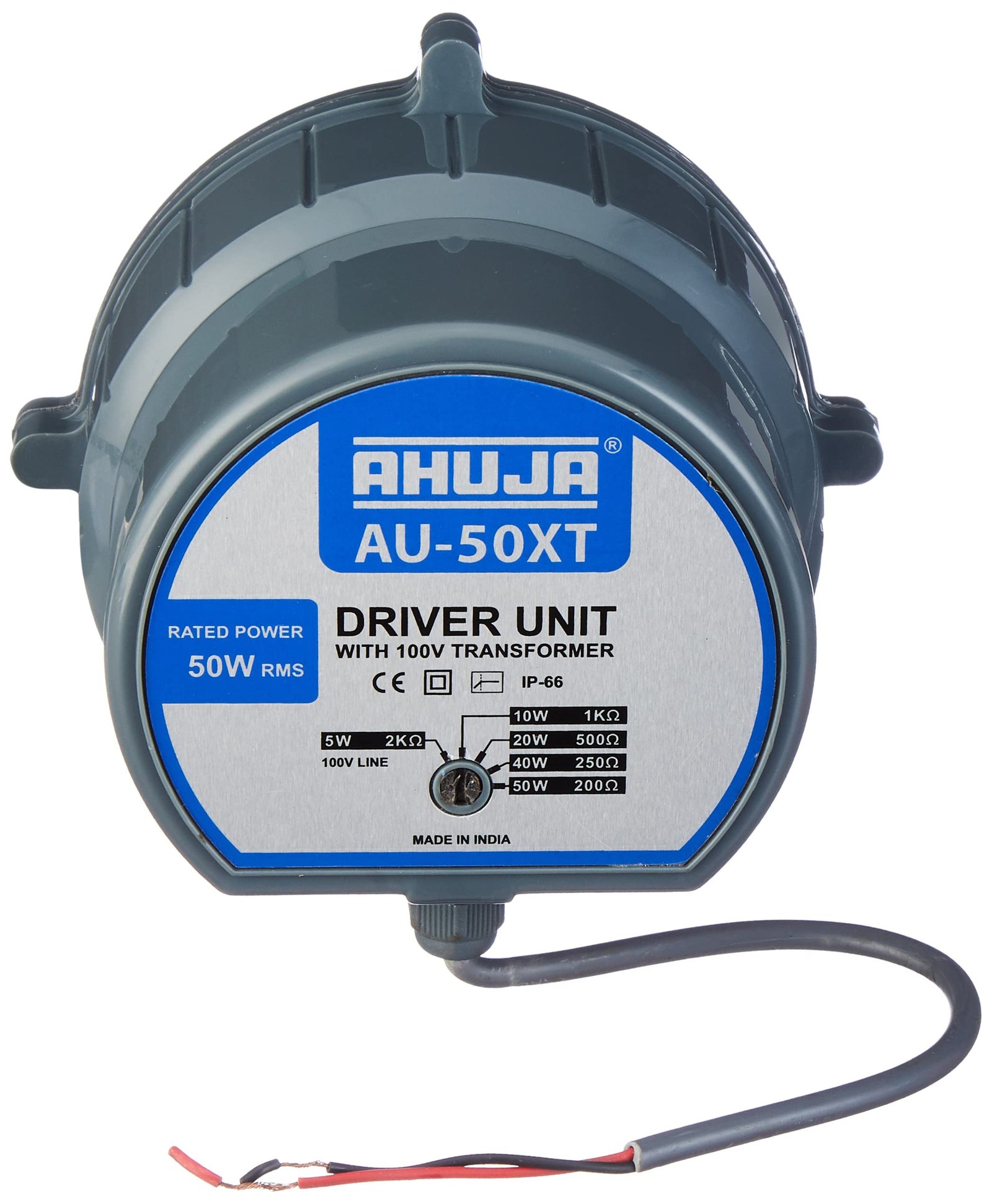

50W PA DRIVER UNIT AHUJA

The Ahuja AU-50XT is a high-performance 50-watt PA driver unit designed for public address systems requiring robust sound output and durability. It’s particularly suitable for outdoor installations, such as stadiums, factories, and large venues, thanks to its weatherproof construction and high sound pressure level (SPL).

• Power Handling:

1. Rated Power: 50W RMS
2. Maximum Power: 70W

• Transformer:

1. Built-in 100V transformer
2. Selectable power taps/impedance via a rear-mounted rotary switch

• Impedance Options:

1. 200Ω (50W)

2. 250Ω (40W)

3. 500Ω (20W)

4. 1kΩ (10W)

5. 2kΩ (5W)

• Frequency Response: 160Hz to 7kHz
• Sound Pressure Level (SPL):

1. 113dB at 1W/1m
2. 130dB at 50W/1m

• Construction:

1. Die-cast aluminium acoustic head
2. Precision-wound voice coils on an aluminium bobbin for efficient heat dissipation

• Weatherproof Rating: IP66 (when mounted on a reflex horn), suitable for outdoor use
• Mounting: 1-3/8” – 18 TPI throat coupling
• Dimensions: Ø150mm x H143mm
• Weight: 2.47 kg
