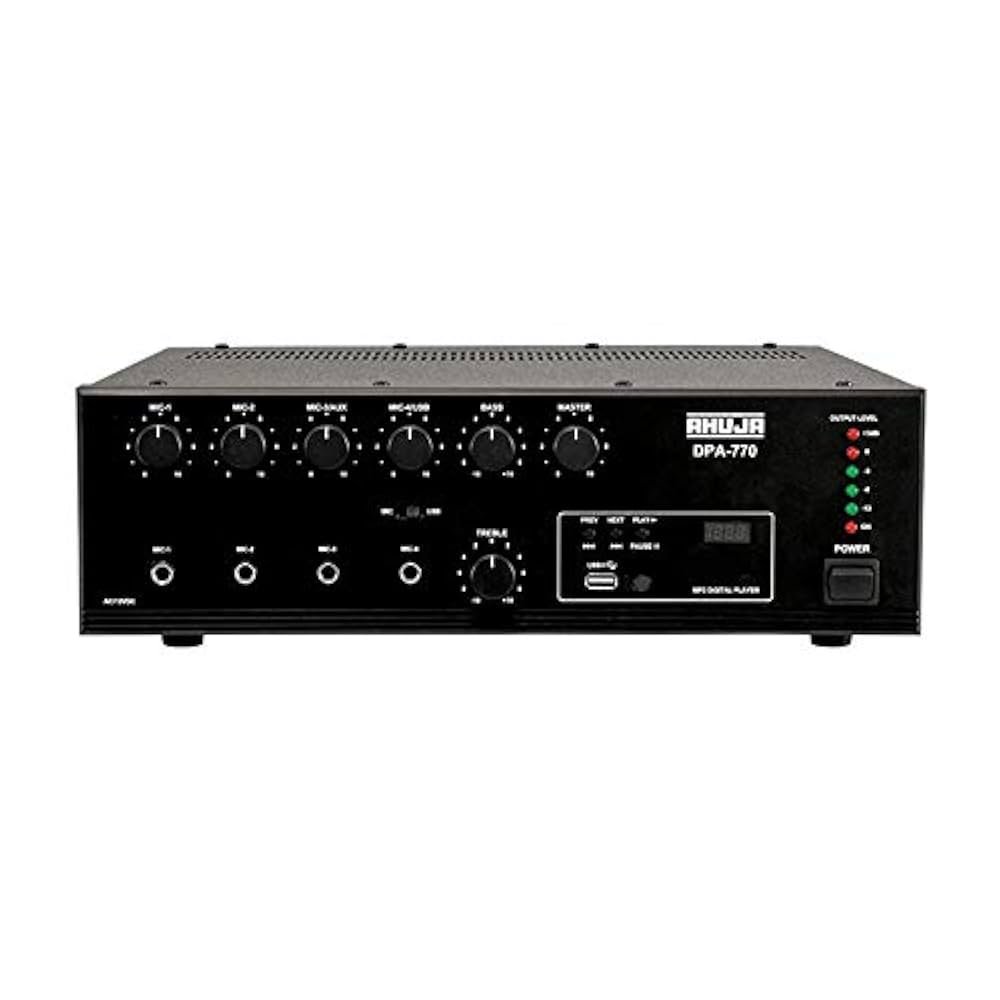

A compact and reliable 75-watt public address mixer amplifier with multiple mic inputs, built-in MP3 player, Bluetooth, and dual power operation—ideal for medium-sized venues and mobile setups.
- Technical Specifications:
- Rated Output Power: 75W RMS at 10% THD
- Max Power: 100W
- Frequency Response: 50Hz – 15kHz ±3dB
- Signal-to-Noise Ratio: ≥55dB
2. Inputs:
- 4 × Microphone (0.6mV, 4.7kΩ)
- 1 × Auxiliary (100mV, 330kΩ)
- Built-in MP3 player (USB/SD)
- Bluetooth streaming
3. Outputs:
- Speaker outputs: 4Ω, 8Ω, 16Ω, 100V line
- Line out: 1V, 3.5kΩ
- 5-LED output level indicators
4. Power Supply:
- AC Operation: 220–240V, 50/60Hz
- DC Operation: 12V car battery input
- Power Consumption: 170VA (AC), 3A (DC)
5. Physical:
- Dimensions: 385mm (W) × 125mm (H) × 300mm (D)
- Weight: ~8.8 kg
