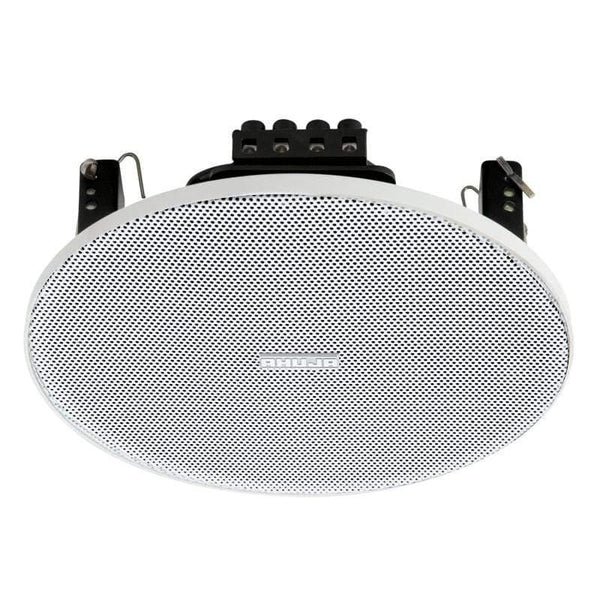

AHUJA CEILING SPEAKER 6W

AHUJA CEILING SPEAKER 6W – Premium Public Address Flush Mount Ceiling Speaker

The AHUJA CEILING SPEAKER 6W series represents a flagship standard in low-profile, high-efficiency commercial audio deployment. Meticulously engineered for distributed public address and high-fidelity background music (BGM) installations, these flush-mount speakers blend naturally into any modern architectural setting. Powered by an integrated 100V line matching transformer (LMT), the AHUJA CEILING SPEAKER 6W is built to counteract signal degradation over extensive wiring networks, ensuring pristine, uniform sound transmission across large commercial zones. Combining custom-designed full-range transducers with robust, aesthetically optimized grill designs, this compact speaker range provides an ideal acoustic column effect and wide dispersion. It is the definitive workhorse for environments demanding clear spoken words and clean background music track reproduction.

Key Features of AHUJA CEILING SPEAKER 6W

• Optimized Full-Range Transducer: Powered by a premium full-range cone driver (ranging from 3-inch to 5-inch configurations based on specific models) optimized for crisp mid-range intelligibility.

• Integrated 100V Line Matching Transformer: Features an onboard multi-tap 100V transformer allowing installers to easily balance or scale power loads across massive arrays.

• Selectable Power Taps: Offers ultra-flexible wattage selection options (6W, 3W, and 1.5W) via accessible terminal blocks or receptacles to match localized volume demands.

• Ultra-Low Silhouette & Flush Mount Design: Features a stylish, low-profile front grill and frame assembly that integrates into false ceilings, gypsum board setups, or grid tiles.

• Rugged Front Protective Mesh: Protected by a durable, powder-coated aluminum or premium molded ABS plastic mesh grid that resists dust collection and structural wear.

• Tool-Free Installation Framework: Built with spring-loaded ceiling clamps or intuitive screw-mounting configurations for rapid, secure, and tool-free deployment.

• Excellent Wide-Angle Dispersion: Engineered to optimize horizontal dispersion patterns, cutting down acoustic hot spots or sound dead zones within large open layouts.

Applications and Usage of AHUJA CEILING SPEAKER 6W

The versatile architecture and exceptional audio clarity make the AHUJA CEILING SPEAKER 6W standard choice across several industries:

• Corporate Offices & Boardrooms: Delivers clean, intelligible vocal projection for announcements, internal paging, and subtle background scoring.

• Fine Dining Restaurants & Cafés: Emits balanced acoustic waves for low-volume background tracks without cutting off personal customer conversations.

• Healthcare Facilities & Hospitals: Provides localized, clear public paging calls and emergency broadcasts without causing acoustic fatigue to patients.

• Shopping Malls & Retail Outlets: Scales easily into hundreds of simultaneous nodes for uniform audio coverage across wide commercial store layouts.

• Hotels & Hospitality Centers: Enhances public reception lounges, corridors, and fitness facilities with consistent premium audio streaming.

Technical Specifications

Specification	Details
Product Category	AHUJA CEILING SPEAKER 6W
Input Power Capacity	6W RMS
Speaker Configuration	Full-Range Dual-Cone Dynamic Driver
Transformer Line Voltage	100V Line Operation
Selectable Power Taps	6W / 3W / 1.5W
Nominal Impedance Taps	1.6k Omega / 3.3k Omega / 6.6k Omega
Frequency Response Range	60 Hz – 15,000 Hz
Sound Pressure Level (1W/1m)	92 dB
Maximum Rated SPL	Up to 100 dB
Grille Material Composition	Powder-Coated Aluminum Mesh / Premium ABS
Mounting Mechanism	Spring-Loaded Clamps or Screw-Mount Assembly
Average Net Unit Weight	0.41 kg to 0.85 kg (Model Dependent)

Benefits of Choosing the AHUJA CEILING SPEAKER 6W

• Eliminates High-Frequency Power Losses: Utilizing a 100V multi-tap design, it allows installers to string long wire runs back to central amplifier racks without sacrificing volume or clarity.

• Minimal Aesthetic Impact: The crisp white finish and low-profile bezel blend into contemporary commercial drywall or panel layouts.

• Localized Acoustic Calibration: Installers can dial down power taps on individual units to avoid overpowering smaller rooms while running full capacity in open foyers.

• Long-Term Structural Reliability: Built using non-corrosive, premium plastic or coated metal frameworks, these modules resist heat build-up and typical moisture exposure.

Installation and Wiring Guidelines

• Ceiling Cutout Preparation: Measure and score accurate circular ceiling cutouts matching the technical specification dimensions of your model.

• Power Tap Matching: Strip the raw cable ends and terminate onto the correct impedance block (6W, 3W, or 1.5W) to set desired audio zones before closing the frame.

• Phasing Alignment: Maintain strict polarity matching across all interconnected units to eliminate low-frequency phase cancellation across larger halls.

• Clamping Engagement: Pull back the heavy-duty spring-loaded arms and ease the AHUJA CEILING SPEAKER 6W into the cutout, allowing the clamps to automatically snap flush against the backing tile.
