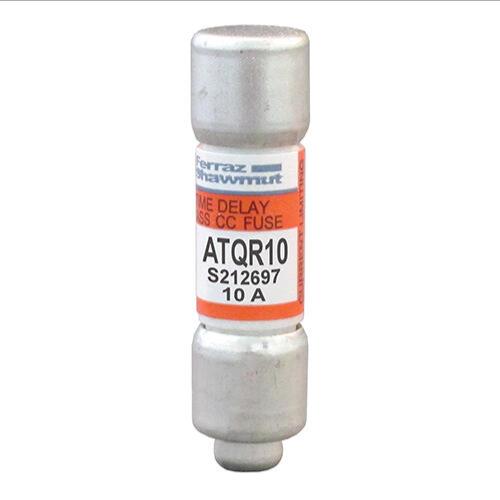

The ATQR10 is a 10-amp, Class CC time-delay fuse from Mersen’s Amp-Trap 2000® series, designed for branch circuit protection in applications with high inrush currents, such as control transformers and solenoids.
- Current Rating: 10 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA at 600 VAC, 100 kA at 300 VDC
- Fuse Type: Time-Delay (Slow Blow)
- Class: CC
- Dimensions: Approximately 10 mm diameter × 38 mm length
- Mounting Style: Clip
- Certifications: UL, CSA, RoHS compliant
- Operating Frequency: 50/60 Hz
