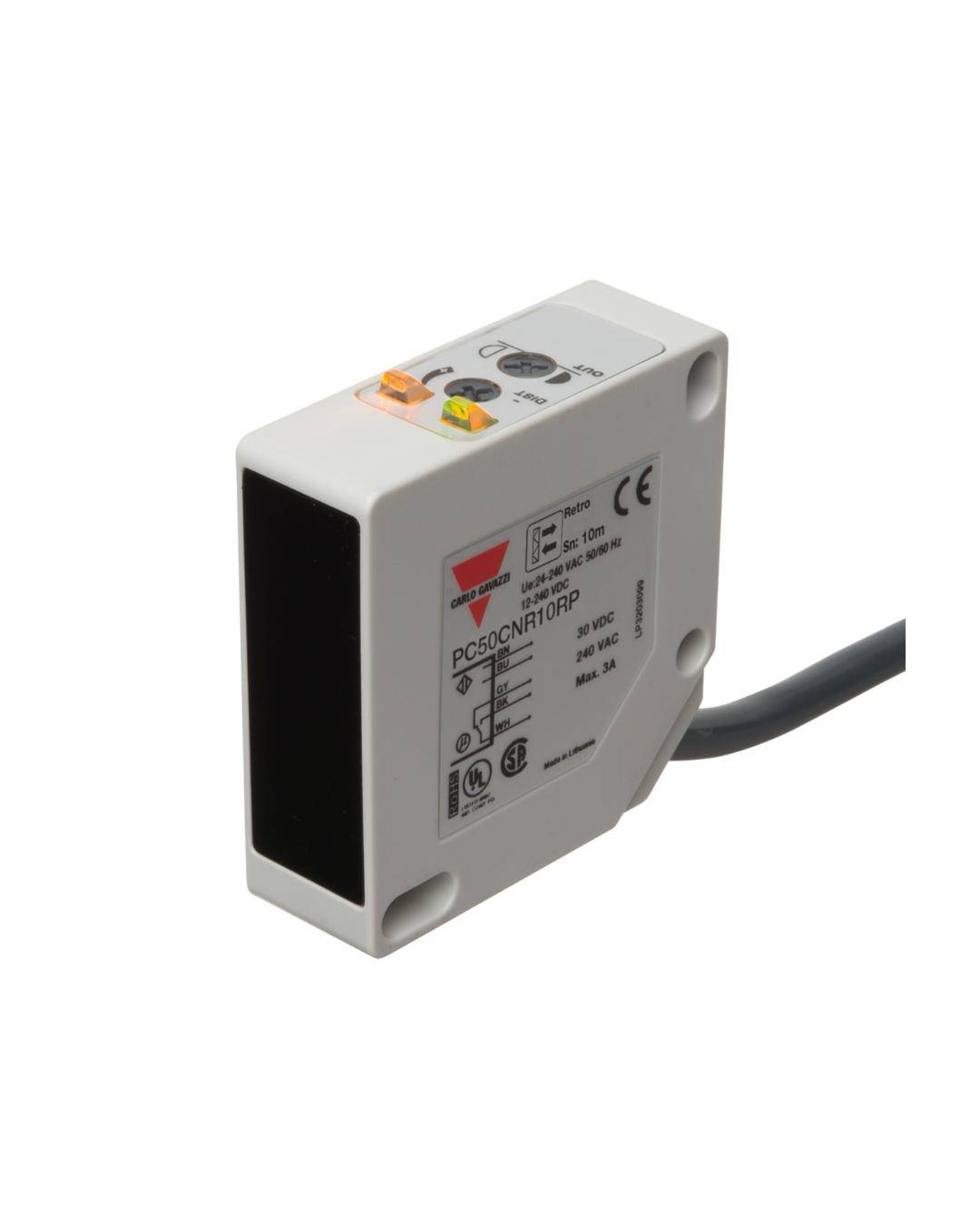

Carlo Gavazzi Retro-Reflective Photoelectric Sensor (PC50CNR10RP-2M)
The Carlo Gavazzi PC50CNR10RP-2M is a high-performance, industrial-grade retro-reflective photoelectric sensor engineered for reliable non-contact object detection in challenging factory automation and material handling environments. Housed in a compact, rugged square PC/ABS enclosure, this sensor offers a generous 10-meter sensing range when paired with a standard corner-cube reflector. Featuring advanced modulated infrared light technology, it minimizes false triggers caused by ambient glare or high-frequency lighting, making it an ideal choice for tracking, counting, and positioning applications on high-speed production lines.
Key Features
-
Long-Range Optical Performance: Provides a stable 10m operating distance, allowing for flexible installation layout setups across wide conveyor lines, gates, and factory transit aisles.
-
High Chemical & Impact Resistance: Encased in a reinforced polycarbonate/ABS composite housing with an IP67 rating, safeguarding the internal optics against moisture ingress, aggressive dust, and washdown spray.
-
Dual Output Modes (Light On / Dark On): Equipped with a selectable output design that supports both Light On and Dark On operations, simplifying integration into diverse PLC logic control circuits.
-
Clear LED Status Indication: Outfitted with highly visible dual-LED indicators (Yellow for output activation, Green for target signal stability) to expedite on-site mechanical alignment and diagnostic troubleshooting.
-
Pre-Wired 2-Meter Cable Connection: Includes a durable, industrial-grade 2m PVC cable for reliable connection directly into electrical distribution boxes without the need for accessory patch cords.
Technical Specifications
| Feature | Specification |
| Model Number | PC50CNR10RP-2M |
| Brand | Carlo Gavazzi |
| Sensor Type | Retro-Reflective Photoelectric Sensor |
| Rated Operating Distance ($S_n$) | Up to 10 meters (When paired with ER4 reflector) |
| Light Source | Infrared, modulated light (880 nm) |
| Supply Voltage | 10 to 30 V DC (Including ripple) |
| Output Type | Transistor (PNP or NPN depending on wiring configuration, NO/NC adjustable) |
| Switching Frequency | 200 Hz |
| Connection Type | 2-meter PVC Cable (4 x 0.34 mm2) |
| Ingress Protection Rating | IP67 |
| Standards & Certifications | CE Marked, cULus Listed, RoHS Compliant |
Applications
-
Conveyor & Packaging Systems: Detecting box presence, monitoring package spacing, and initiating sorting gate sequences in high-throughput logistics hubs.
-
Automated Door & Gate Controls: Serving as a primary safety barrier loop to stop overhead doors or access gates from closing on vehicles or staff.
-
Palletizing & Warehousing Logistics: Verifying proper pallet alignment and track clearing zones inside automated storage and retrieval systems (ASRS).
-
Automotive Assembly Plants: Tracking large component frames along continuous monorail or skid conveyor assemblies.
