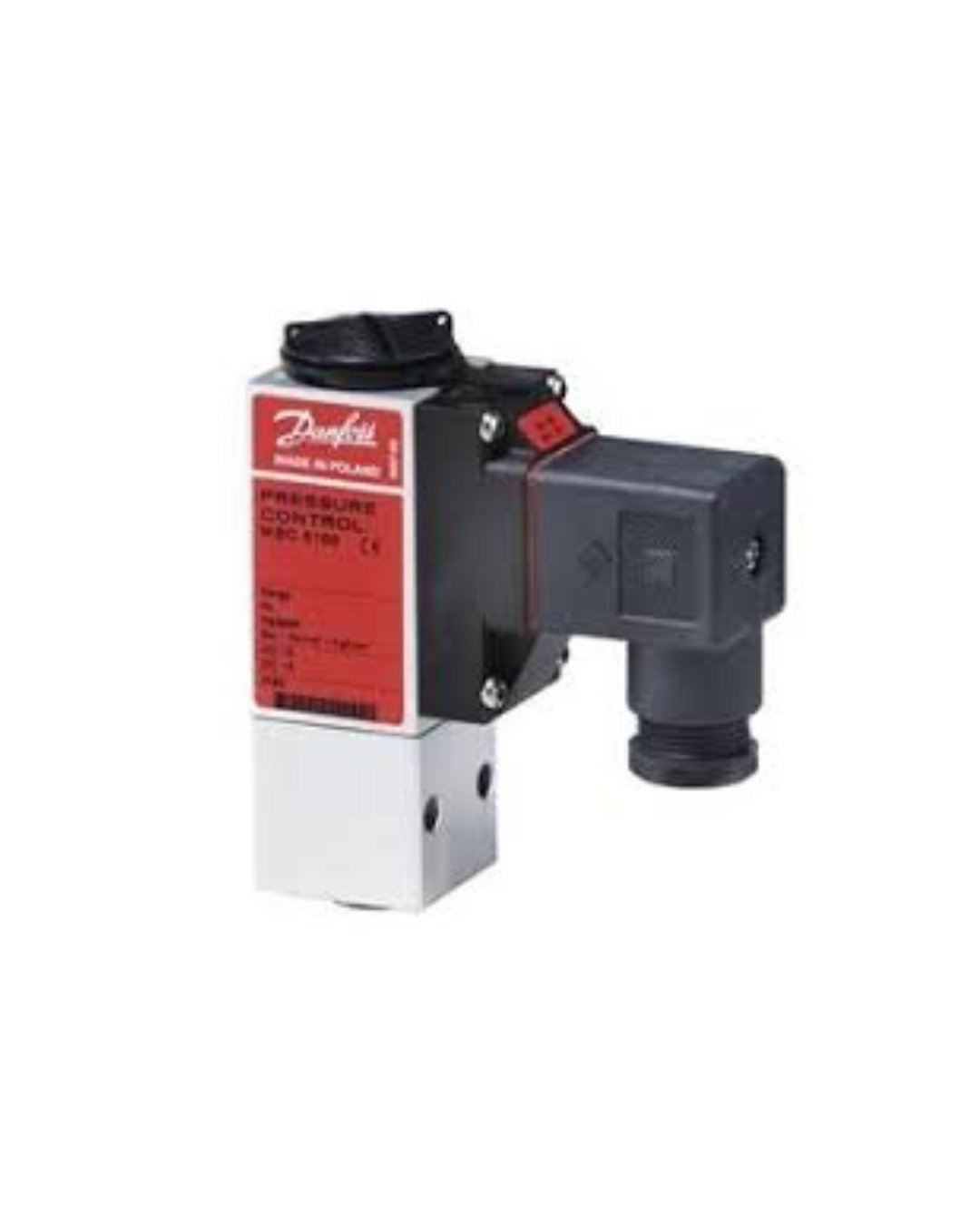

Danfoss Pressure Switch 061B000466 MBC5100

Danfoss Pressure Switch 061B000466 MBC5100 – Industrial Block-Type Controls for Heavy-Duty and Marine Environments

The Danfoss Pressure Switch 061B000466 MBC5100 is an industrial-grade, heavy-duty pressure control component designed engineered for critical applications where space optimization, structural integrity, and reliability are absolute priorities. Manufactured by Danfoss as part of their elite MBC 5100 sensing solutions series, this compact, block-type switch is built to survive the harshest working conditions, such as those found in marine engine rooms and intensive industrial plant operations. This specific model utilizes a highly sensitive internal bellows mechanism to monitor and regulate media pressures with excellent precision and repeatability.

The Danfoss Pressure Switch 061B000466 MBC5100 operates on a regulation spectrum of -0.2 to 4 bar. It provides automatic reset functionality via a Single Pole Double Throw (SPDT) microswitch system. Its specialized block-type shape allows the device to be mounted directly onto mechanical manifolds or paired alongside Danfoss MBV test valves. This design creates a clean, integrated setup for modern machine construction and automated diagnostic frames.

Key Features of Danfoss Pressure Switch 061B000466 MBC5100

• Ultra-Compact Industrial Block Design: Engineered to fit into tight machine installations, saving physical footprint space while maintaining mechanical strength.

• High Vibration and Shock Stability: Built to withstand the continuous structural vibrations and heavy mechanical pulses common in ship engine rooms.

• Dependable Bellows Sensing Element: Outfitted with an industrial-grade bellows mechanism that ensures high accuracy and repeatable switching operations over a long service life.

• Auto-Resetting SPDT Contact System: Features a Single Pole Double Throw contact mechanism that provides automated circuit resetting for safety signaling, system trips, and alarm configurations.

• Fixed, Low Differential Settings: Offers a controlled differential window spanning 0.3 to 0.45 bar, preventing system short-cycling and guaranteeing precise pressure threshold tracking.

• Global Marine and Offshore Approvals: Fully certified by nine major international shipping authorities (including ABS, BV, DNV, GL, and LR), making it globally compliant for high-stakes maritime installations.

Applications and Usage of Danfoss Pressure Switch 061B000466 MBC5100

The robust design, high accuracy, and strong casing of the Danfoss Pressure Switch 061B000466 MBC5100 make it an important diagnostic component across many applications:

• Marine Machine Rooms and Propulsion: Deployed to monitor lube oil systems, fuel supply channels, turbochargers, and thruster gear pressures onboard commercial ships.

• Industrial Air Compressors and Fans: Serves as a primary safety cutout or pressure cycle controller to keep gas pressures safely below system thresholds.

• Heavy-Duty Hydraulic Power Packs: Integrated into industrial manufacturing loops, processing lines, and heavy tooling machinery to manage liquid pressure levels.

• Water Treatment Booster Pumps and Filters: Tracks fluid flow dynamics and back-pressure limits to flag filter blockages or control pump cycles.

Technical Specifications

Installation Guidelines

• Mount with Care: Secure the unit via its specialized block flange or process thread. Always use appropriate seals to maintain an airtight connection without over-torquing the block housing.

• Wire the SPDT Terminals Correctly: Remove the EN 175301-803-A DIN plug to expose the internal wiring terminal strip. Wire the system according to your application requirements for normally open (NO) or normally closed (NC) fail-safe automation loops.

• Keep Settings Factory Confirmed: Since the low differential on this model is fixed, do not attempt to adjust internal mechanism parameters manually. This keeps your threshold monitoring consistent and preserves the manufacturer warranty.

  To review official sensor dimension matrices, marine type approvals, and complete hardware model technical data sheets, check the global Danfoss Product and Sensing Solutions Directory.

  To request a fast commercial quote or evaluate real-time regional warehouse stock availability for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
