FESTO DISTRIBUTOR BLOCK FR-4-1/2-B

Festo Distributor Block FR-4-1/2-B – Premium Aluminium Pneumatic Multi-Connector Manifold

The Festo Distributor Block FR-4-1/2-B (Festo Part Number: 6704 / GTIN: 4052568065102) is a highly durable, industrial-grade distribution manifold engineered for efficient compressed air management. Built to act as a central hub in complex pneumatic circuits, this block allows a single primary supply line to split into multiple separate output channels safely. It is an indispensable solution for automation systems where reliable, uniform airflow must be divided seamlessly among multiple downstream components, such as cylinders, control valves, or air tools.

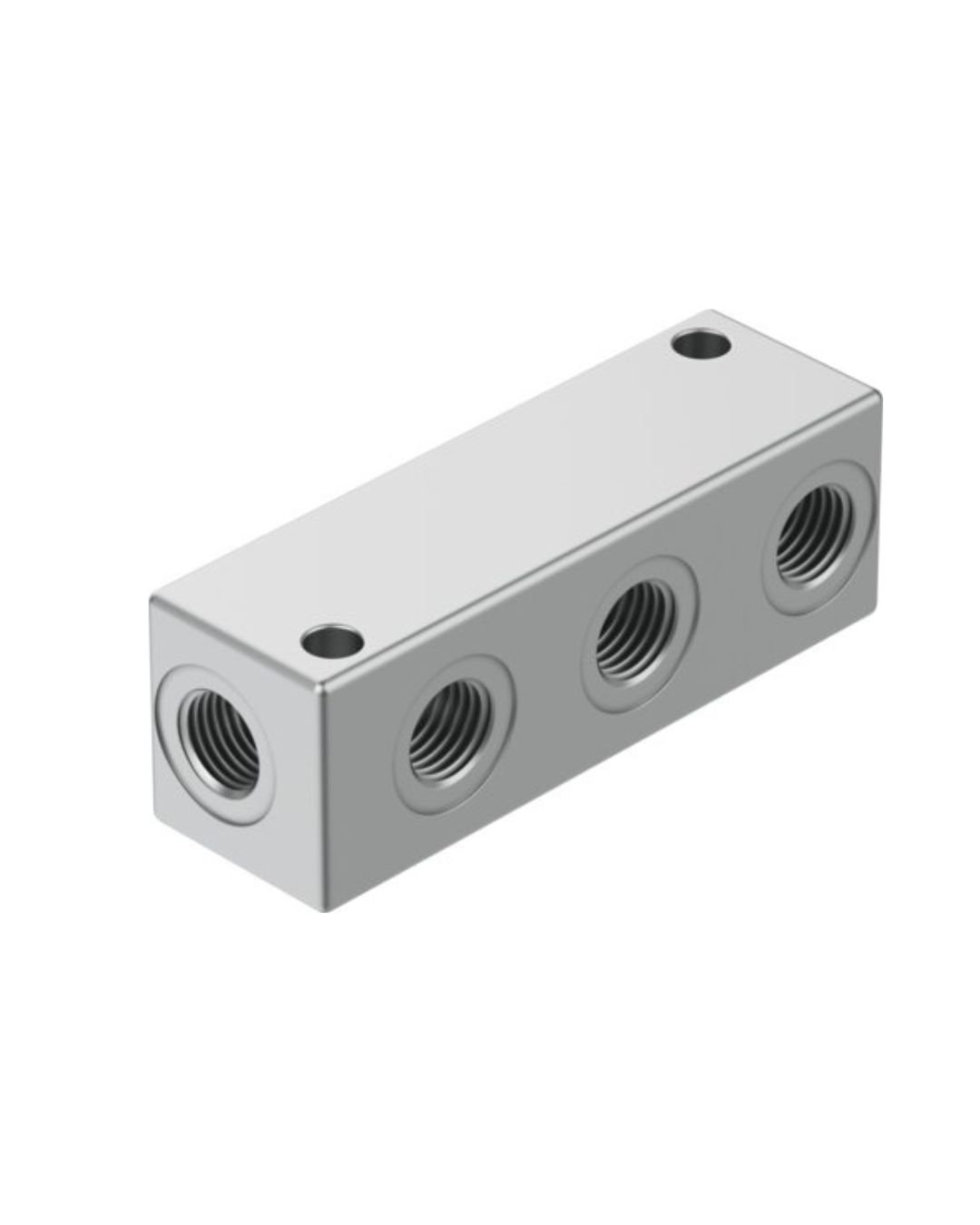

As shown in the product image, the Festo Distributor Block FR-4-1/2-B features a precision-machined, space-saving square profile. It is meticulously crafted from premium die-cast aluminium, providing excellent mechanical structural integrity and high chemical resistance in heavy-use factory environments. This block features high-flow G1/2 female threaded ports, consisting of 1 main supply input line and 3 versatile output lines positioned for optimal, streamlined routing. It also includes integrated pre-drilled through-holes on the chassis face, allowing technicians to secure the block directly to machine frames, walls, or modular mounting surfaces with total stability.

Key Features of the Festo Distributor Block FR-4-1/2-B

• High-Flow 4-Port Configuration: Composed of a single G1/2 input supply channel and 3 dedicated G1/2 output ports to distribute compressed air efficiently across multiple pneumatic lines.

• Rugged Die-Cast Aluminium Body: Manufactured from industrial-grade anodized die-cast aluminium for long-term corrosion resistance and excellent physical impact protection.

• Flexible Mounting Orientation: Specially designed for high versatility, this manifold can be mounted in any optional spatial position (Any) without affecting performance parameters.

• Zero Corrosion Stress (CRC 0): Certified under Corrosion Resistance Class CRC 0, ensuring safety and structural longevity in standard, clean industrial workspaces.

• Flexible Lubrication Compatibility: Fully optimized to run on standard dry compressed air, while safely supporting lubricated air systems when required by automated field tooling.

Common Applications and Industrial Usage

The immense pressure handling and compact, robust engineering of the Festo Distributor Block FR-4-1/2-B make it a preferred standard inside modern manufacturing setups:

• Automated Assembly Lines: Distributes high-pressure pilot air uniformly to multiple pneumatic cylinders, solenoid valves, and pick-and-place grippers simultaneously.

• Packaging and Bottling Plants: Acts as a central manifold point to feed air supplies to sorting gates, pneumatic actuators, and stamping machines.

• Electronics Manufacturing: Provides highly regulated, contaminant-free airflow management for sensitive pick-and-place component assembly machines.

• Pneumatic Control Enclosures: Simplifies internal layout structures inside machine control panels by organizing and splitting thick incoming supply lines into smaller sub-circuits.

Technical Specifications

The operational and environmental characteristics of the Festo Distributor Block FR-4-1/2-B conform to strict global industrial standards:

Installation and Pneumatic Safety Guidelines

Warning: Pneumatic systems store high amounts of mechanical energy under pressure. Always isolate the primary air compressor feed and bleed out all residual system pressure before installing or modifying any distributor component.

• Seal Threaded Fittings Properly: When installing standard G1/2 pipe fittings into the Festo Distributor Block FR-4-1/2-B, utilize a high-quality thread sealant or PTFE tape to ensure an airtight, leak-free seal and prevent pressure drop.

• Manage Unused Ports Safely: If your circuit configuration only requires two out of the three available output ports, you must seal the remaining open port with a properly rated G1/2 blanking plug to maintain system pressure integrity.

• Adhere to Air Standards: To keep the internal channels free of clogs or premature wear, verify that your air preparation loop utilizes a filter regulator capable of removing moisture and particulates according to ISO 8573-1:2010 standards.

To review official dimensional drawings, internal structural symbols, and complete pneumatic component catalogs, check the global Festo Industrial Automation Product Support Directory.

To request a fast commercial quote or evaluate real-time regional warehouse stock availability for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
