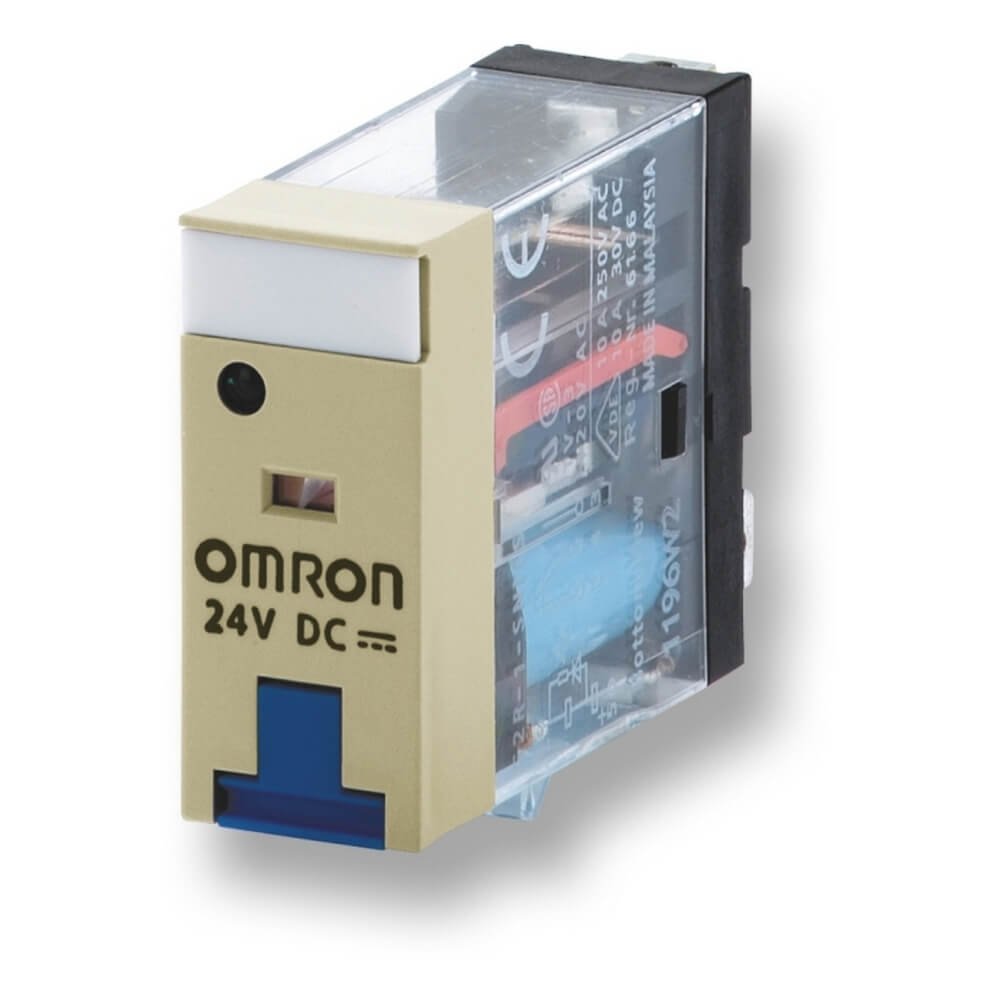

The G2R-1-SNI is a compact, reliable SPDT (Single Pole Double Throw) plug-in relay designed for general-purpose applications. It features an LED indicator, mechanical operation flag, and a lockable test button, making it ideal for control panels and automation systems requiring easy diagnostics and maintenance.
- Contact Configuration: SPDT (1 Form C)
- Coil Voltage Options:
- 24VDC
- 110VAC
- 230VAC
- Contact Rating:
- 10A at 250VAC (resistive load)
- 10A at 30VDC (resistive load)
- 7.5A at 250VAC (inductive load, cosφ = 0.4)
- 5A at 30VDC (inductive load, L/R = 7 ms)
- Coil Power Consumption:
- Approximately 0.53W (DC)
- Approximately 0.9VA (AC)
- Indicators:
- LED indicates coil energized
- Mechanical flag shows contact position
- Lockable test button for manual activation
- Operate Time: ≤15 ms
- Release Time: ≤10 ms
- Mechanical Life: Up to 20 million operations (DC), 10 million operations (AC)
- Electrical Life: ≥100,000 operations under rated load
- Dielectric Strength:
- ≥5,000VAC between coil and contacts
- ≥1,000–3,000VAC between contacts
- Insulation Resistance: ≥1,000 MΩ at 500VDC
- Vibration Resistance: 10–55 Hz, 0.75 mm amplitude
- Shock Resistance: Withstands up to 1,000 m/s² (destruction), 100–200 m/s² (malfunction)
- Operating Temperature: –40°C to +70°C
- Mounting: Plug-in 5-pin base compatible with standard sockets
- Housing: Transparent with nameplate for easy identification
- Weight: Approximately 20 grams
