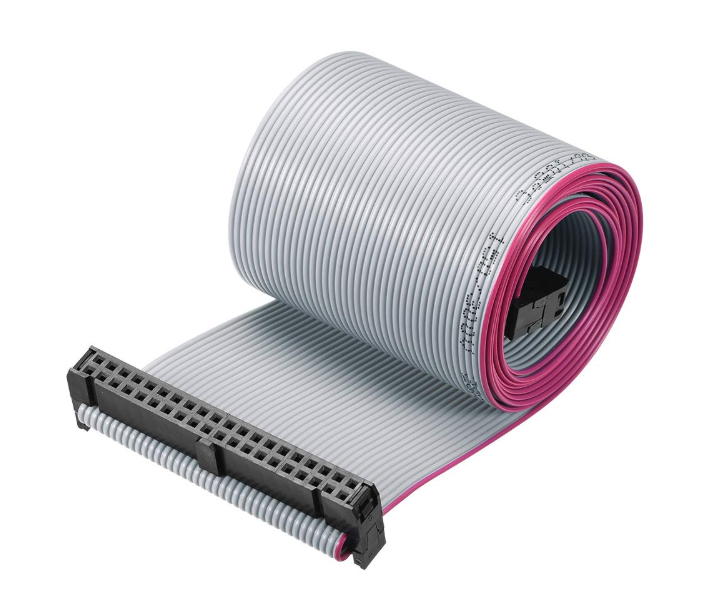

The 40-Way IDC Ribbon Cable is a flat, multi-conductor cable designed for streamlined data and signal connections. Ideal for internal wiring in computers, embedded systems, and industrial equipment, it enables quick and reliable mass termination using IDC connectors.

• Type: IDC (Insulation Displacement Cable), 40-conductor flat ribbon cable
• Conductor Count: 40 ways (wires)
• Pitch: 1.27mm (0.05 inch) between conductors
• Cable Width: Approximately 50.8mm (2.0 inches)
• Color: Typically gray with a red stripe for Pin 1 identification
• Material: PVC insulation with stranded tinned copper conductors
• AWG Size: Commonly 28 AWG (varies by manufacturer)
• Termination: Designed for use with 40-pin IDC connectors
• Applications: IDE interfaces, GPIO expansion, signal transmission, industrial controllers
• Operating Temperature: Typically -20°C to +105°C
• RoHS Compliant: Yes
