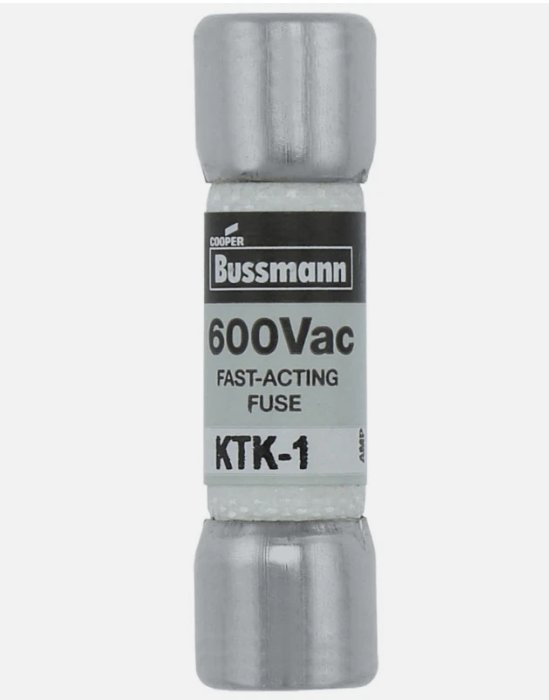

The KTK-1 fuse is a 1-amp, 600 VAC fast-acting midget fuse from Eaton Bussmann’s Limitron® KTK series. Designed for supplemental protection in control circuits, lighting, and meter circuits, it is ideal for applications where fast response to overcurrents is essential
- Current Rating: 1 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 100 kA at 600 VAC
- Fuse Type: Fast-Acting (Non-Time Delay)
- Dimensions: Approximately 10.3 mm diameter × 38.1 mm length
- Body Material: Melamine
- End Caps: Nickel-plated bronze
- Mounting Style: Ferrule (clip-in)
- Certifications: UL 248-14, CSA, CE, RoHS compliant
