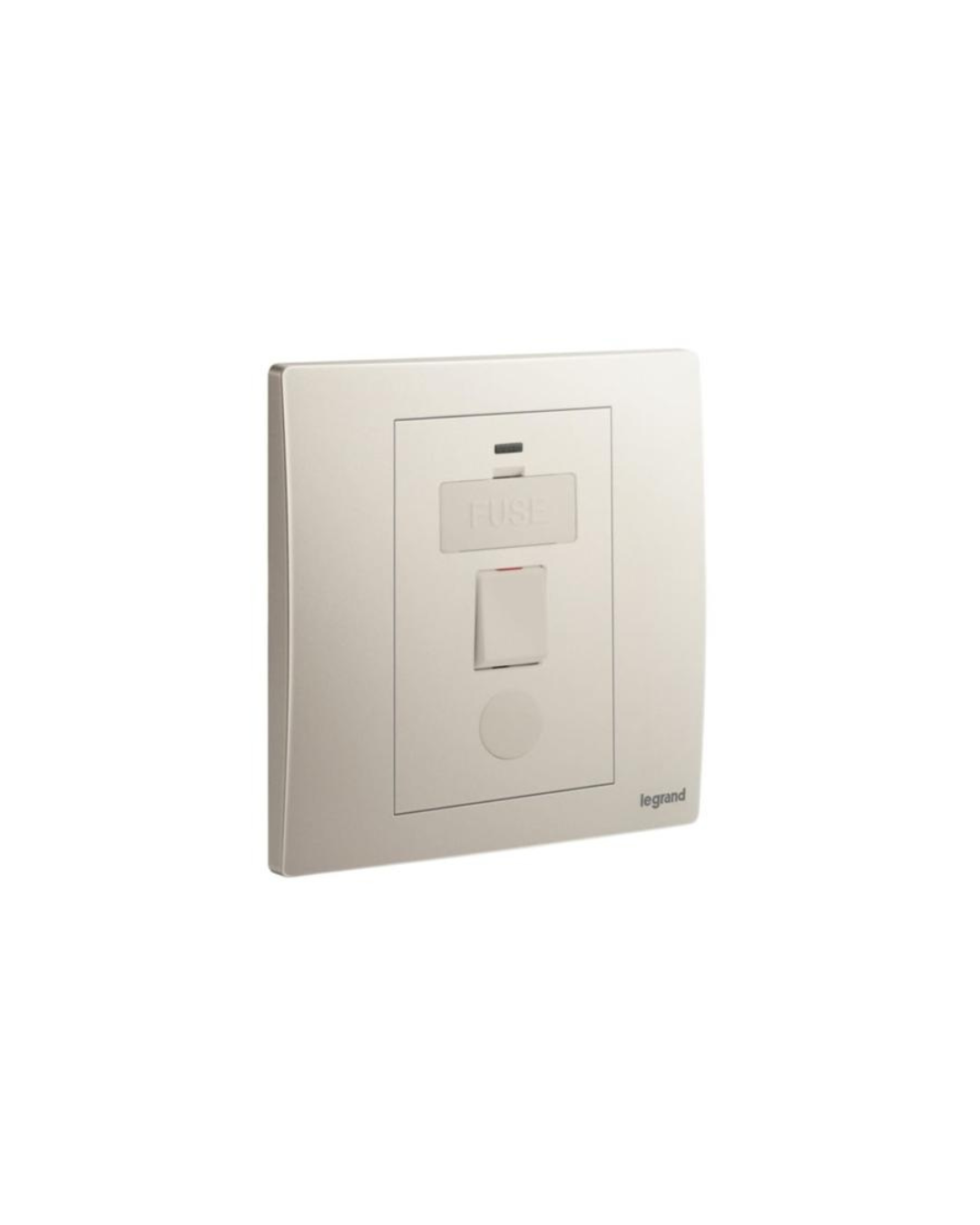

Legrand Mallia Senses 1-Gang Switched Fused Connection Unit with LED Indicator & Cord Outlet (281142CH)
The Legrand Mallia Senses 281142CH is a premium, high-load fused connection unit (FCU / fused spur) that combines advanced electrical protection with sophisticated, modern design. Part of Legrand’s celebrated Mallia Senses line, this 13A, 250V single-gang unit features a gentle profile curve, a seamless integrated rocker switch, a subtle LED power-on indicator, and a convenient bottom cord outlet. Finished in an elegant, metallic Champagne Gold, it is the perfect aesthetic and technical solution for connecting and isolating heavy fixed appliances—such as water heaters, air conditioning units, and kitchen appliances—while flawlessly elevating high-end home or office interiors.
Key Features
-
Sensual Slim Geometry: Features a minimalist, ultra-flat plate that arches into a soft curve, allowing it to blend seamlessly into contemporary high-end interiors.
-
Integrated Safety & Protection: Outfitted with an easily accessible front fuse compartment (accommodating standard 5 x 25 mm glass fuses) to isolate and shield heavy appliances against electrical overloads.
-
Discrete LED Status Light: Features a built-in LED power indicator that provides an instant, elegant visual readout of the circuit’s live status.
-
Bottom Cord Outlet: Includes an integrated cable exit point at the base, enabling clean, secure, surface-run flexible wiring straight to the appliance.
-
Heavy-Duty Terminal Mechanics: Engineered with rugged, clearly marked screw-type terminals to maximize electrical contact surface area and minimize installation time.
Technical Specifications
| Feature | Specification |
| Model / Reference | 281142CH |
| Brand / Range | Legrand / Mallia Senses |
| Product Type | 1-Gang Switched Fused Connection Unit (Fused Spur) |
| Rated Current / Voltage | 13 A / 250 V AC (50/60 Hz) |
| Color / Finish | Champagne Gold / Satin Metallic |
| Material | Premium Flame-Retardant Polycarbonate (Halogen-Free) |
| Terminal Capacity | 1 x 4 mm2Â to 4 x 1 mm2Â (Flexible or Rigid) |
| Dimensions | 86 mm x 86 mm x 32 mm (Built-in Depth: 25.1 mm) |
| Protection Ratings | IP20 / IK04 Impact Resistance |
| Standards Compliance | BS 1363-4 Certified, RoHS Compliant |
Applications
-
High-Load Appliance Isolation: Providing safe, dedicated switching and fused protection for water heaters, built-in ovens, and dishwashers.
-
Luxury Residential & Hospitality: Elevating visible electrical points in high-end kitchens, bathrooms, and guest suites with a premium champagne accent tone.
-
Fixed Commercial Equipment: Supplying safe, isolated power to hardwired hardware like hand dryers, hand-held workspace tools, or specialized terminal racks.
