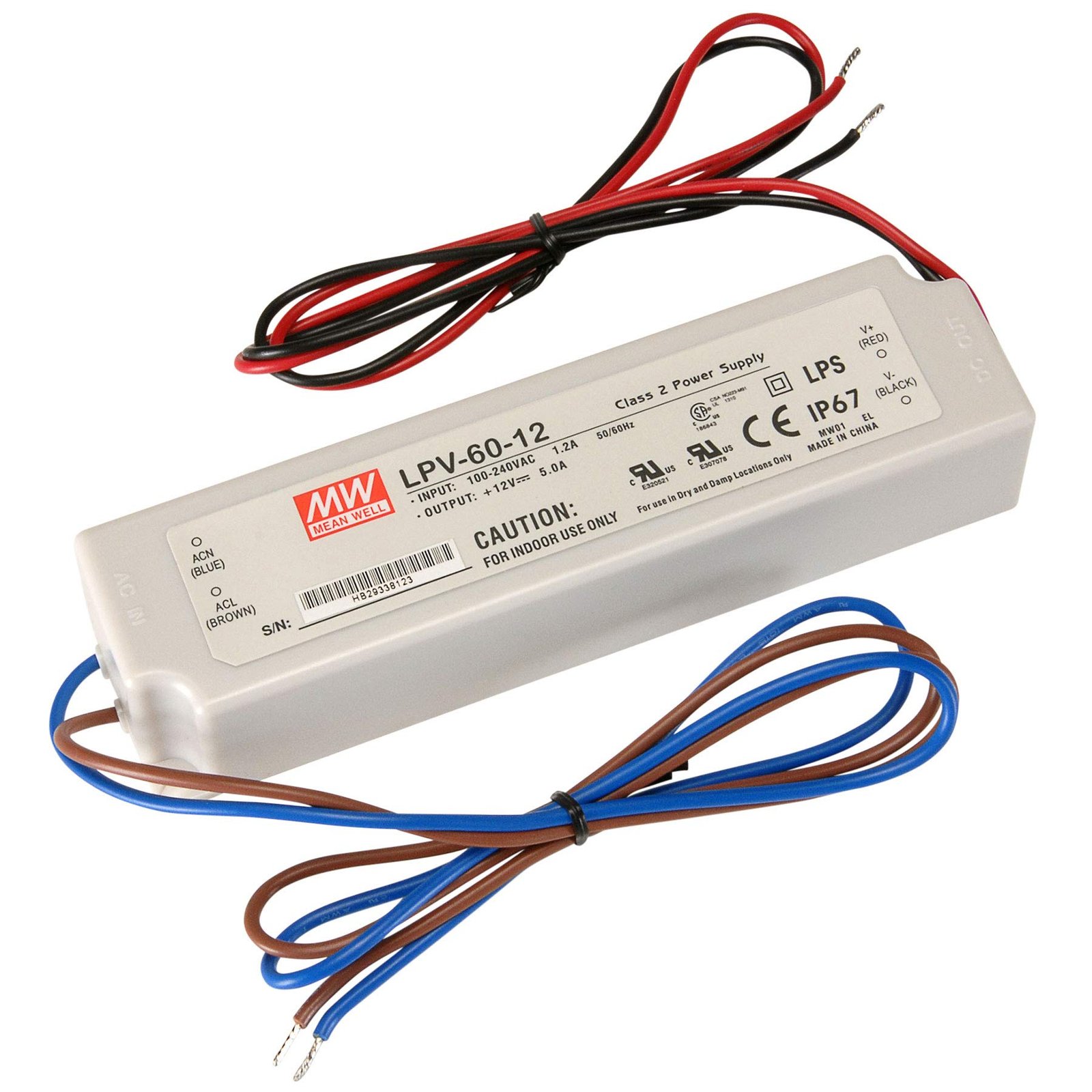

The LPV-60-12 is a 60 W constant-voltage LED driver that delivers a reliable 12 V DC output at up to 5 A. Encased in a fully sealed IP67 housing, it’s designed for both indoor and outdoor LED lighting and signage applications, offering robust protection against weather and dust.
- Output Voltage: 12 V DC
- Output Current: 5 A
- Total Power: 60 W
- Input Voltage Range: 90–264 VAC (47–63 Hz) or 127–370 VDC
- Efficiency: Approximately 86–88%
- Ripple & Noise: ≤150 mVp-p
- Protections:
- Short-circuit
- Overload (hiccup auto-recovery mode)
- Over-voltage
- Surge Resistance: Capable of handling 300 VAC surge for several seconds
- Cooling: Passive convection (fanless)
- Isolation: Class II transformer-isolated design
- Ingress Protection: IP67 – fully dust-tight and waterproof
- Operating Temperature: –30 °C to +70 °C (with power derating above ~50 °C)
- Dimensions: ~162 × 42.5 × 32 mm
- Mounting: Suitable for bracket or chassis mounting
- MTBF (Mean Time Between Failures): ~4.5 million hours
- Warranty: 2 years
