MURR ELEKTRONIK Switching module power supply 24V 2.5A

Murrelektronik Eco Rail Power Supply (24V DC, 2.5A)

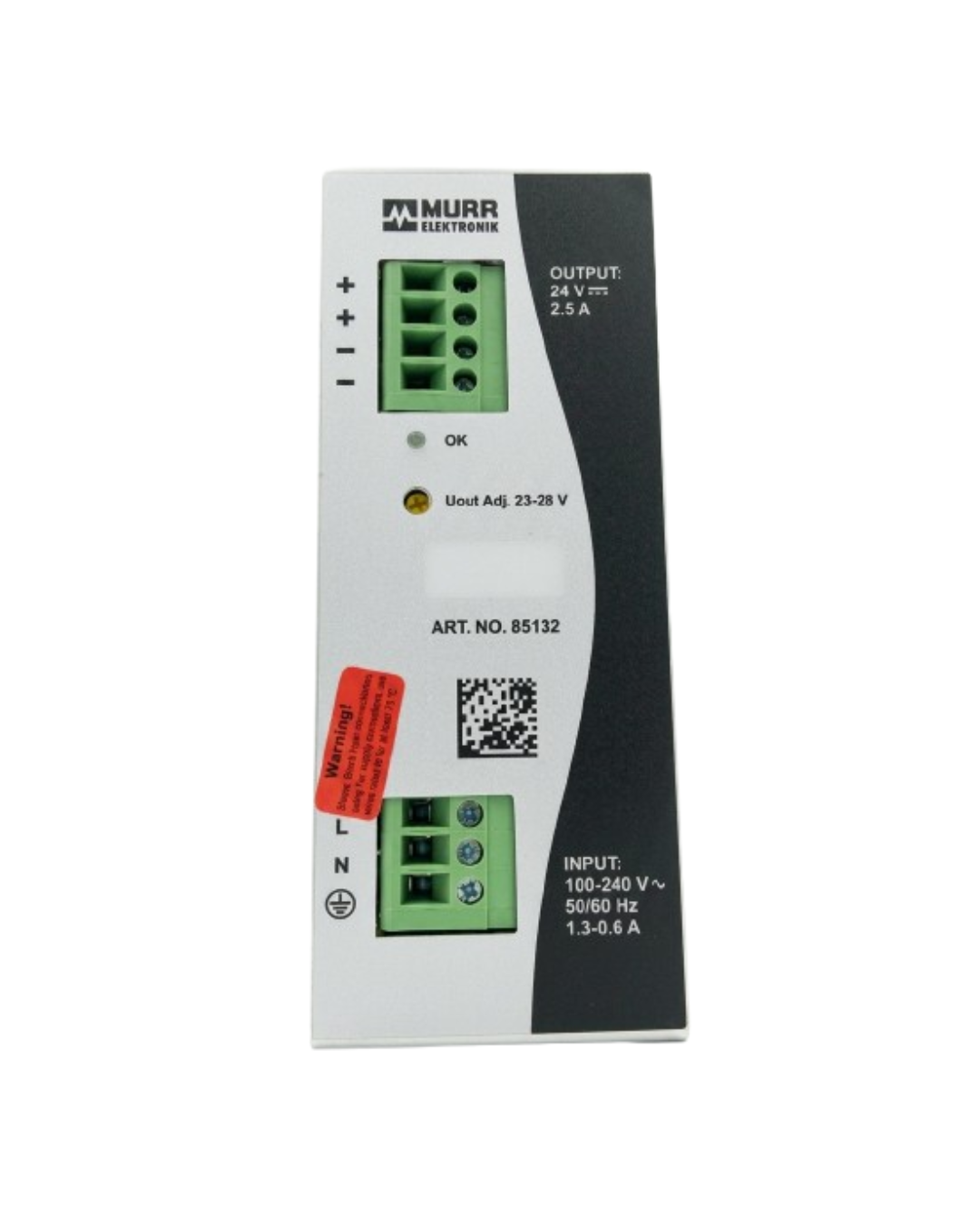

This device is a professional Murrelektronik Eco Rail regulated switching power supply (Article Number: 85132). It is designed for efficient, space saving DIN rail mounting inside automation panels, industrial control cabinets, and power distribution systems.

The Eco Rail series focuses on providing core, heavy duty power delivery functions with high efficiency and thermal stability, ensuring a stable $24text{V DC}$ bus line for PLCs, sensors, actuators, and relays.

Key Features

Regulated DC Output Line: Outputs a highly stable, low ripple 24V DC supply current rated at 2.5A, perfectly matching standard industrial control voltage thresholds.
Adjustable Output Voltage Potentiometer: Outfitted with a front accessible trimmer potentiometer (Uout Adj. 23-28 V). This allows commissioning technicians to adjust the voltage level between $23text{V}$ and $28text{V DC}$ to compensate for inline voltage drops along long cable runs.
Universal Wide Range Input: Built to handle wide nominal input variations spanning 100V AC to 240V AC $50 / 60text{ Hz}$ standard network frequency). This allows global implementation across different regional electrical grids without requiring step down transformers.
Status Monitoring Indicator: Features an integrated green “OK” LED on the front plate to give immediate visual verification of active output regulation status during troubleshooting.
Heavy Duty Screw Terminals: Outfitted with clear pluggable or fixed screw terminal blocks at the top and bottom edges. The input and output poles are explicitly screen printed (+ + - - and L N ⏚) to minimize wiring mistakes.

Technical Specifications

Feature	Specification
Model / Article Number	Art. No. 85132
Brand / Manufacturer	Murrelektronik
Input Voltage Range $U_{In}$	100V AC to 240V AC $50 / 60text{ Hz}$
Input Current Rating	1.3 A to 0.6 A depending on input grid level
Nominal Output Voltage $U_{Out}$	24V DC
Voltage Trim Range	Adjustable from 23V DC to 28V DC
Nominal Output Current $I_{Out}$	2.5 A continuous capacity
Total Rated Power Capacity	60 W output power
Mounting Configuration	Snaps onto standard 35 mm DIN rail (EN 60715)
Enclosure Protection Rating	IP20 (Touch safe casing and terminals)
Internal Safety Protections	Short circuit protection, overload protection, and over voltage tracking

Applications

Programmable Logic Controller (PLC) Supplies: Acts as the primary power supply for small to medium PLC racks (e.g., Siemens S7-1200, Allen Bradley Micro800), industrial HMI screens, and communication modules.
Sensor and Instrumentation Loops: Powers $24text{V DC}$ processing components such as inductive proximity switches, photoelectric eyes, ultrasonic level sensors, and pressure transmitters.
Control Relay and Contactor Logic: Provides reliable switching current to drive control relay coils, safety interlocks, optocouplers, and signal distribution nodes.
Machine Tooling and Field IO Blocks: Powers fieldbus distributed I/O stations, solenoid valves, and pneumatic manifold banks on automated assembly lines.
