OMCH PROXIMITY SWITCH TL-N10ME2 – Square Inductive NPN NC Proximity Sensor

The OMCH PROXIMITY SWITCH TL-N10ME2 is a rectangular, unshielded inductive proximity sensor engineered for non-contact object detection in industrial automation systems. Operating on a 3-wire DC circuit system, the OMCH PROXIMITY SWITCH TL-N10ME2 delivers an NPN normally closed (NC) output configuration with a nominal sensing distance of 10 mm.

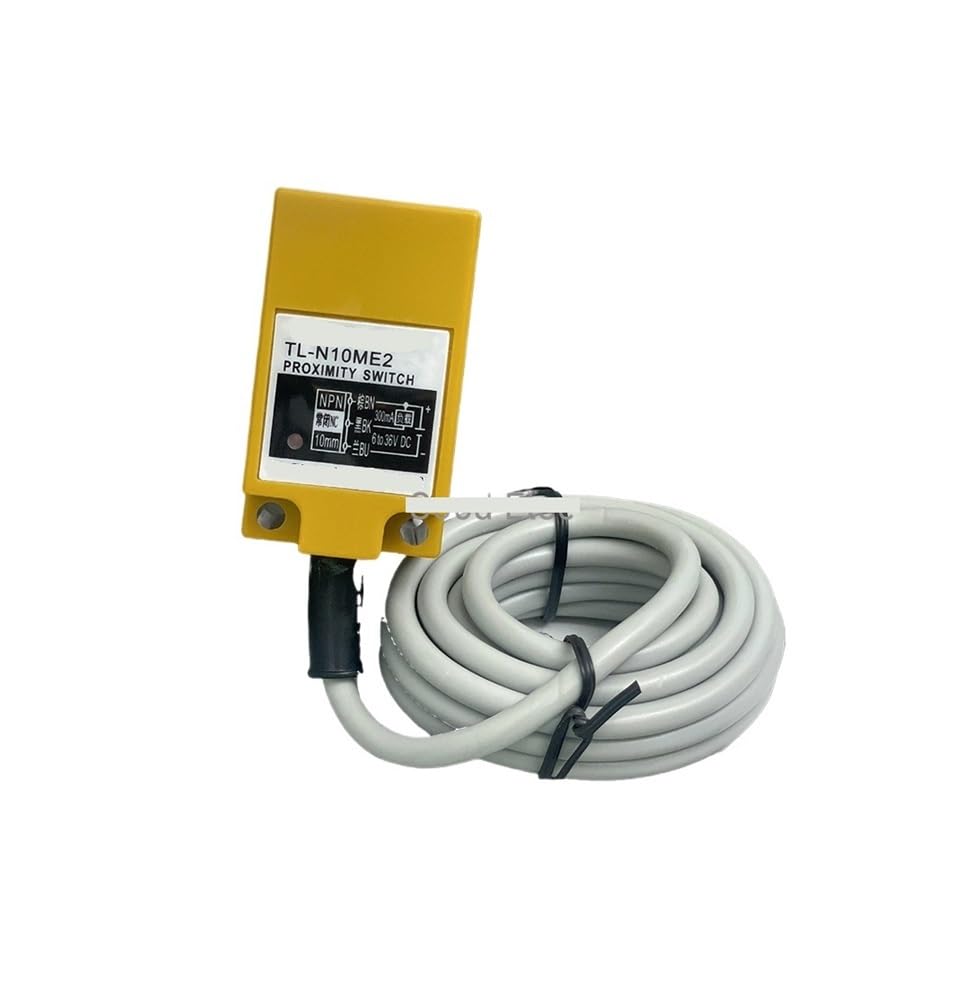

As depicted in the product image, the sensor is housed in a bright yellow, heat-resistant ABS plastic enclosure. It features a front-facing sensing head, a high-visibility red LED operation indicator light, a clear wiring schematic printed on the faceplate, two side mounting holes for direct installation, and an integrated pre-wired 2-meter 3-core connection cable.

Key Features of the OMCH PROXIMITY SWITCH TL-N10ME2

• Unshielded Inductive Sensing: Designed for non-contact detection of ferrous metallic target objects up to a maximum distance of 10 mm (pm 10%).

• NPN Normally Closed (NC) Output: Provides a continuous signal when no target object is detected and breaks the output circuit upon target presence.

• Wide DC Supply Operating Voltage: Accepts power inputs ranging from 6 to 36 V DC (rated across standard 12–24 V DC systems).

• Built-In Protection Circuitry: Integrated protection circuits guard the internal electronics against power supply reverse polarity and inductive voltage surges.

• High-Visibility LED Status Indicator: Features a red LED indicator on the front panel that gives clear visual confirmation of sensor power and output switching states.

• Rugged ABS Plastic Shell: Constructed from oil-resistant, heat-resistant ABS material rated at IP67 for ingress protection against moisture and airborne dust.

Common Applications and Industrial Usage of OMCH PROXIMITY SWITCH TL-N10ME2

The non-contact reliability and wide voltage range of the OMCH PROXIMITY SWITCH TL-N10ME2 make it suitable across automated machinery lines:

• Conveyor Systems & Material Handling: Detects moving metal carriers, totes, and metallic packages along assembly lines to control belt indexing.

• Machine Tooling & CNC Equipment: Acts as a limit or safety interlock sensor, determining mechanical home positions or component positioning on machine slides.

• Packaging & Bottling Lines: Counts metallic caps, tracks machine stroke positions, and alerts system PLCs when structural gates or guards open.

• Elevators & Hoisting Equipment: Detects leveling plates and mechanical carriage positions for safe positioning control.

Technical Specifications of OMCH PROXIMITY SWITCH TL-N10ME2

The electrical, environmental, and structural parameters for the OMCH PROXIMITY SWITCH TL-N10ME2 include:

Wiring Guidelines and Installation Best Practices

Wiring Colors (DC 3-Wire):

• Brown (BN): Positive DC Supply Line (+V DC)

• Blue (BU): Negative DC Supply / Ground (0V  -V DC)

• Black (BK): NPN Output Signal Line (Switched to 0V)

• Mounting Consideration: As an unshielded (non-flush) sensor, ensure adequate clear space surrounding the sensing face to prevent surrounding mounting metals from triggering false readings.

• Noise Avoidance: Run sensor cables separately from high-voltage AC motor cables or VFD output wires to prevent electromagnetic noise coupling.
