PH TESTER TECPEL
PH TESTER TECPEL – High-Precision Waterproof Pen-Type Digital pH & Temperature Meter
The PH TESTER TECPEL (specifically model pH-709) is an IP67-rated waterproof handheld meter engineered for accurate, real-time pH, oxidation-reduction potential (ORP/mV), and temperature measurement. Built with a high-performance microprocessor architecture, this compact instrument delivers fast response times and stable liquid analysis across field testing, laboratory environments, and industrial water treatment systems.
Featuring a dual-line LCD display, the meter simultaneously displays the live pH or mV reading alongside liquid temperature. Integrated Automatic Temperature Compensation (ATC) automatically adjusts measurement calculations based on liquid thermal variations from 0°C to 90°C.

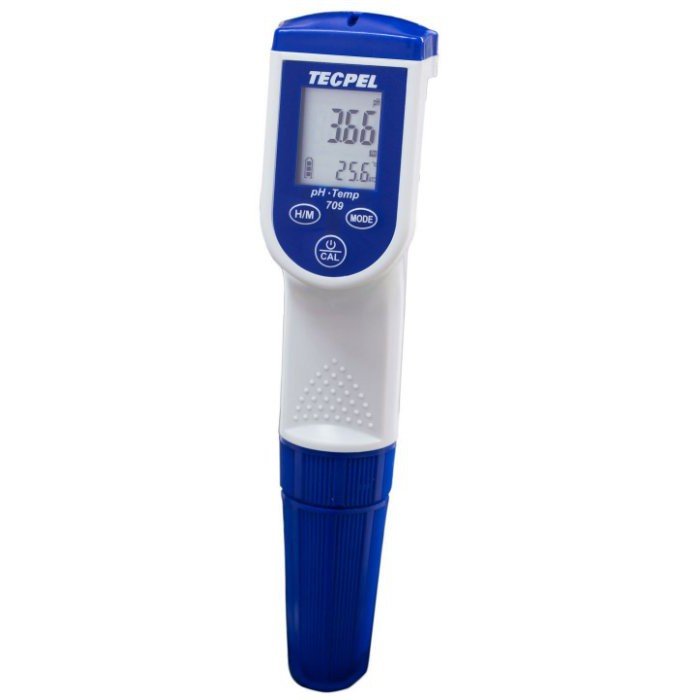

As illustrated in the product image, the meter features an ergonomic, blue-and-white IP67 waterproof housing designed with an angled display screen for effortless reading, alongside tactile front buttons (H/M, MODE, CAL/Power) for quick operation.
Key Features of the PH TESTER TECPEL
-
Microprocessor-Based Accuracy: Advanced signal processing delivers rapid, highly reliable readings with pm 0.01 pH accuracy.
-
IP67 Waterproof & Rugged Housing: Designed to withstand direct water immersion and harsh environmental exposure without damaging internal electronics.
-
Dual LCD Display with Backlight: Simultaneously displays active pH or mV measurements along with temperature.
-
Automatic Temperature Compensation (ATC): Continuously compensates for temperature drift between 0°C and 90°C to maintain measurement precision.
-
Replaceable Plug-in Sensor Module: Allows quick field replacement of worn glass electrodes, automatically recognizing the attached sensor module upon insertion.
-
Multi-Function Memory & Power Saving: Features Data-Hold, Max/Min recording, Percentage of Slope (PTS) display after calibration, and a 10-minute auto power-off function.
Common Applications and Practical Usage
The portability and waterproof rating of the PH TESTER TECPEL make it suitable for liquid testing across diverse fields:
-
Water Treatment & Environmental Monitoring: Tests drinking water supplies, wastewater effluent, municipal water processing lines, and river runoff.
-
Aquaculture & Hydroponics: Maintains precise pH and thermal levels in fish farming tanks, aquariums, and nutrient solution reservoirs for hydroponic crops.
-
Food & Beverage Processing: Measures liquid acidity in brewing, winemaking, dairy production, and beverage manufacturing.
-
Educational & Industrial Laboratories: Serves as a versatile handheld tool for routine chemical analysis, educational chemistry experiments, and quality control routines.
Technical Specifications
The core performance, physical, and electrical properties for the PH TESTER TECPEL (pH-709) are detailed below:
| Parameter Specification | Technical Details & Operational Values |
| Component Classification | Waterproof Handheld Pen-Type pH / Temp Meter |
| Primary Target Keyword | PH TESTER TECPEL |
| Manufacturer / Model | TECPEL Co., Ltd. / pH-709 |
| pH Measurement Range | -2.00 to 16.00 pH (Standard 0.00 to 14.00 pH) |
| mV / ORP Range | -1000 to +1000 mV (Requires optional ORP probe) |
| Temperature Measurement | 0.0°C to 90.0°C (32°F to 194°F) |
| Accuracy Rating | pH: pm 0.01 pH; Temp: pm 0.2°C; mV: pm 2 mV |
| Resolution | 0.01 pH / 0.1°C / 1 mV |
| ATC Range | 0°C to 90°C (Automatic Compensation) |
| Calibration Points | Push-button 3-point calibration (pH 4.00, 7.00, 10.00) |
| Ingress Protection | IP67 Dust-proof & Submersible |
| Power Supply | 4 x 1.5V AAA (UM-4) Batteries |
| Dimensions / Weight | 195 mm x 40 mm x 36 mm / Approx. 135 g |
Operating Guidelines and Best Practices
CALIBRATION TIP: Perform push-button calibration regularly using standard buffer solutions (pH 4.00, 7.00, or 10.00) to maintain measurement accuracy.
Electrode Storage: Always keep the glass bulb moistened by adding a few drops of electrode soaking solution inside the protective cap when not in use.
Rinsing Technique: Rinse the electrode tip with distilled or deionized water between different fluid samples to prevent cross-contamination.
Industrial Applications and Environmental Testing
Beyond general laboratory testing, integrating a PH TESTER TECPEL unit is ideal for hydroponics nutrient monitoring, swimming pool chemistry control, food and beverage processing, boiler water analysis, and environmental compliance sampling. The instrument’s fast microprocessor architecture ensures rapid response times even in low-conductivity water samples. For laboratory managers, environmental technicians, quality control inspectors, and plant maintenance engineers striving to conform to international water quality testing standards including CE and ISO compliance guidelines, choosing the PH TESTER TECPEL delivers consistent, dependable, and globally trusted analytical measurement performance.
To review official international CE certification guidelines and electrical safety standards for laboratory testing equipment, consult the official European Commission CE Marking Framework Directory.
To evaluate real-time regional warehouse stock availability or request commercial quotes for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
