Phoenix Contact PLUSCON RJ45 Industrial Connector (1419001)

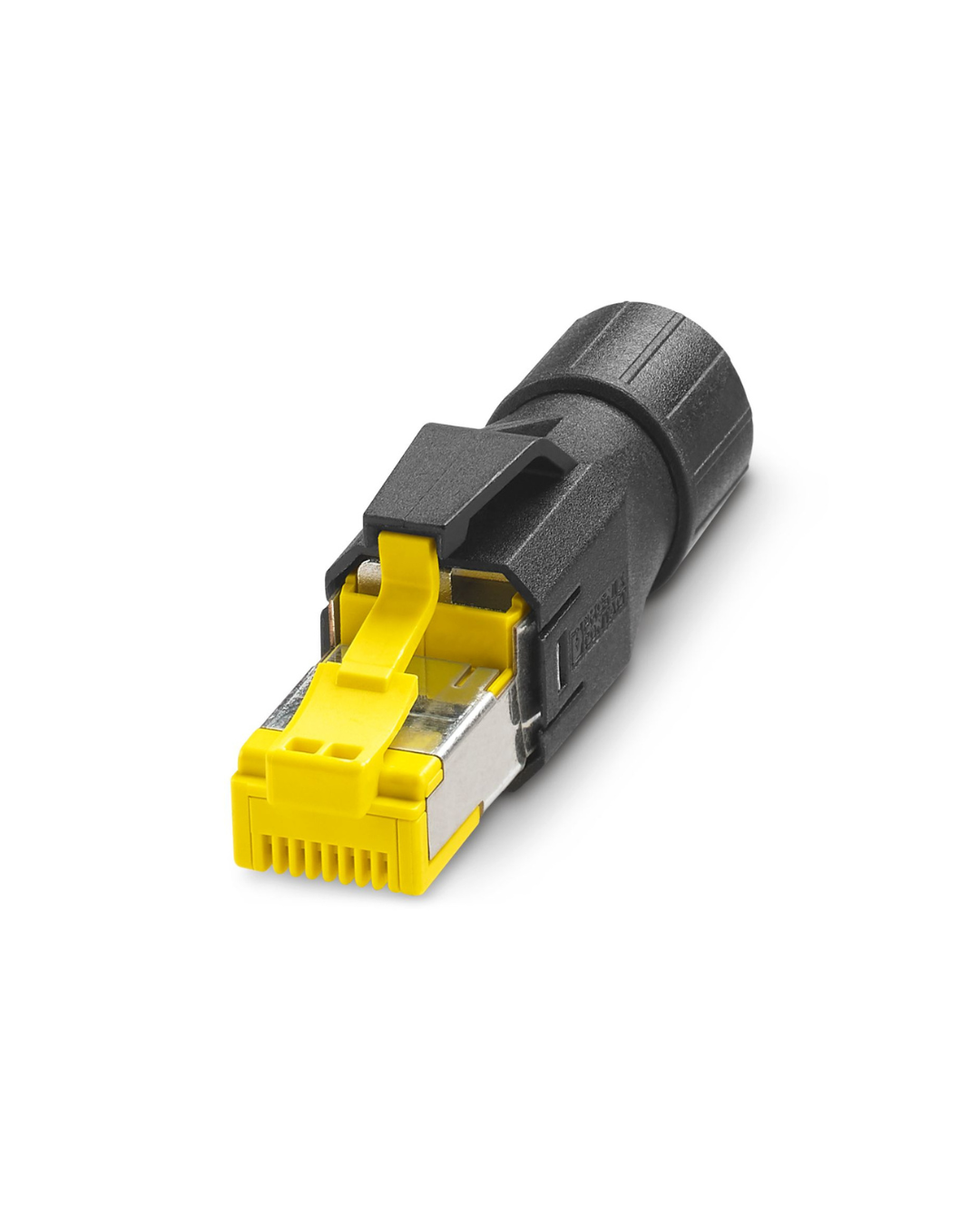

The Phoenix Contact VS-08-RJ45-10G/Q (Part Number: 1419001) is a rugged, industrial-grade Cat6A RJ45 connector designed for high-speed Ethernet data transmission in demanding factory automation environments. Built to handle data transmission rates up to 10 Gbps, this premium connector features an advanced QUICKON fast-connection technology (IDC displacement). This innovation enables network technicians to perform rapid, reliable field terminations on both solid and stranded copper network cabling entirely without specialized tools, ensuring minimal installation downtime and maximum signal integrity.
Key Features
-
10 Gigabit Ethernet Performance: Complies fully with Cat6A (IEC 60603-7-51) standards, allowing for high-bandwidth, noise-immune data transfer speeds reaching up to 10 Gbps.
-
Tool-Free QUICKON Fast Connection: Utilizes integrated insulation displacement contacts (IDC) that securely crimp onto internal wire conductors by hand, eliminating the need for regular RJ45 crimping tools.
-
Superior 360degree Shielding Protection: Enclosed in a robust, zinc die-cast internal housing block that provides exceptional protection against harsh electromagnetic interference (EMI) and high-frequency factory floor noise.
-
High Mechanical Durability: Engineered to support a minimum of 750 insertion/withdrawal cycles, providing a long service life when applied to modular patch bays, test sets, or moving machinery nodes.
-
Industrial Ergonomics & Coding: Features a highly visible, vibrant yellow terminal block guide insert alongside a heavy-duty black outer strain-relief sleeve to prevent cable kinking and pulling stresses.
Technical Specifications
| Feature | Specification |
| Model Number / Designation | VS-08-RJ45-10G/Q |
| Order Number (Part No.) | 1419001 |
| Brand | Phoenix Contact |
| Product Type / Series | Industrial RJ45 Data Connector (PLUSCON Data) |
| Transmission Category / Speed | Cat6A (ISO/IEC 11801) / Up to 10 Gbps |
| Number of Positions | 8-Position (8P8C) |
| Connection Technology | QUICKON IDC Fast Connection |
| Conductor Cross Section | AWG 26 to AWG 24 (Solid or Stranded) |
| Cable External Diameter | 4.5 mm to 8.0 mm |
| Housing Material | PA (Polyamide plastic) / Zinc Die-Cast internal shielding |
| Ambient Operating Temp. | -40°C to +70°C |
Applications
-
Industrial Ethernet Communication: Facilitating high-speed PROFINET, EtherCAT, and Modbus TCP/IP communication backbones between PLCs, HMIs, and control rooms.
-
Industrial IP Camera Networks: Connecting heavy-duty Power-over-Ethernet (PoE) security cameras and vision systems across assembly lines and logistics yards.
-
On-Site Field Assembly: Providing field technicians with an ideal repair or installation solution for fabricating customized patch cables on the factory floor without tools.
-
Marine & Wind Energy Infrastructure: Enabling stable, vibration-resistant network routing inside turbine nacelles, coastal tracking hubs, and maritime control panels.
