IFM Pressure Sensor PN2699 – Compact Electronic Pressure Sensor with Display & IO-Link

The IFM Pressure Sensor PN2699 (part of IFM Electronic’s PN2 series) is a high-precision electronic pressure switch and transmitter designed for industrial automation, pneumatic monitoring, and vacuum process control. Built with a ceramic-capacitive measuring cell, the IFM Pressure Sensor PN2699 provides reliable relative and vacuum pressure measurement across a range of $-1,000text{ to }+1,000text{ mbar}$ ( $-14.5text{ to }+14.5text{ psi}$ ) for liquid and gaseous media.

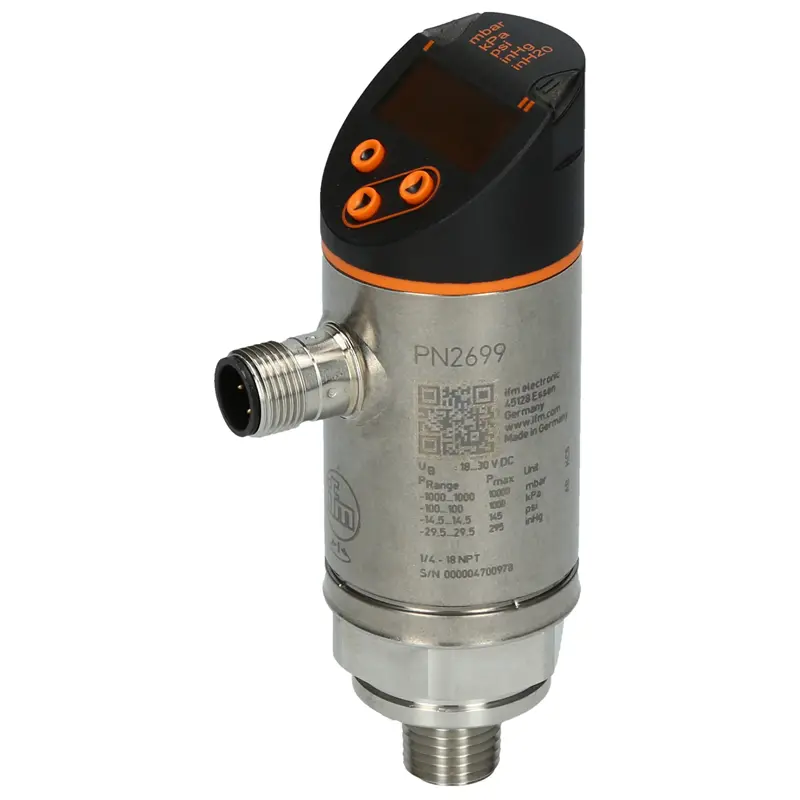

As illustrated in the product image, the sensor features a stainless steel housing with a 4-digit, 2-color (red/green) alphanumeric display unit. The upper section of the housing rotates $345^circ$ , allowing maintenance technicians to orient the digital readout and status LEDs for visibility regardless of mounting position. Equipped with IO-Link communication alongside dual digital outputs and an analog output, it provides seamless integration into modern Industry 4.0 automation networks.

Key Features of the IFM Pressure Sensor PN2699

Ceramic-Capacitive Measuring Cell: Features an $Al_2O_3$ ceramic sensor element that offers resistance to overpressure spikes, wear, and corrosive media.
4-Digit 2-Color LED Display: Displays current system pressure and changes color (red or green) based on user-defined switching thresholds for immediate visual status verification.
Multi-Signal Output Versatility: Configurable for 2 digital switching outputs (PNP/NPN) or 1 switching output plus 1 analog output ( $4text{ to }20text{ mA}$ current or $0text{ to }10text{ VDC}$ voltage, scalable 1:5).
IO-Link Enabled: Supports digital point-to-point IO-Link communication for remote parameter setup, continuous value transmission, and diagnostic monitoring.
$345^circ$ Rotatable Housing: Allows flexible alignment of the display unit and M12 connector after installation into rigid piping manifolds.
Robust IP65 / IP67 Enclosure: Stainless steel ( $316text{L}$ ) body construction with gold-plated connector contacts ensures long-term protection in washdown or high-vibration environments.

Common Applications and Industrial Usage of IFM Pressure Sensor PN2699

The broad measurement range and high accuracy ( $pm 0.4%$ ) of the IFM Pressure Sensor PN2699 suit a wide range of industrial sensing tasks:

Vacuum Gripper & Pick-and-Place Systems: Monitors suction levels in automated handling equipment to verify workpiece retention before robot arm movement.
Pneumatic Line Pressure Regulation: Measures positive and negative pressure lines in industrial compressed air networks to maintain steady operating pressure.
Leak Testing & Enclosure Monitoring: Performs precise differential/relative vacuum decay testing for sealed fluid circuits and industrial chambers.
Hydraulic & Lubrication System Control: Provides overpressure protection and pressure feedback for low-pressure fluid circulation loops.

Technical Specifications of IFM Pressure Sensor PN2699

The electrical, mechanical, and measurement parameters of the IFM Pressure Sensor PN2699 comply with international industrial standards:

Parameter Specification	Technical Details & Operational Values
Component Classification	Electronic Pressure Sensor / Pressure Switch
Primary Target Keyword	IFM Pressure Sensor PN2699
Measuring Range	$-1text{ to }+1text{ bar}$ ( $-1,000text{ to }+1,000text{ mbar}$ / $-14.5text{ to }+14.5text{ psi}$ )
Sensing Cell Element	Ceramic-Capacitive ( $Al_2O_3$ 96%)
Process Connection	Threaded $1/4text{" NPT}$ External Thread
Proof / Burst Pressure	$10,000text{ mbar } (145text{ psi})$ pressure rating / $30,000text{ mbar } (450text{ psi})$ burst
Operating Voltage ( $U_b$ )	$18text{ to }30text{ VDC}$ (SELV / PELV)
Output Configuration	IO-Link / 2 Digital (PNP/NPN) or 1 Digital + 1 Analog ( $4text{--}20text{ mA} / 0text{--}10text{ V}$ )
Accuracy / Deviation	Switch point accuracy $<pm 0.4%$ of span
Medium Temperature Range	$-25text{ °C to }+80text{ °C}$ ( $-13text{ °F to }+176text{ °F}$ )
Ingress Protection Rating	IP65 / IP67
Electrical Connection	M12 Connector (4-pin, gold-plated contacts)

Installation Guidelines and Best Practices

Installation Note: Tighten the sensor using the hex flats at the base ( $1/4text{" NPT}$ fitting) with a wrench rather than turning the display head to prevent mechanical damage.

Torque Application: Apply a maximum tightening torque of $50text{ N}cdottext{m}$ using appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) on the $1/4text{" NPT}$ threads.

Adjusting Display Orientation: Thread the sensor base completely into place, then manually rotate the top housing up to $345^circ$ for optimal keypad access and display visibility.

IO-Link Parameterization: Use an IO-Link master module or IFM’s moneo/linerecorder software to configure switching points, output scaling, and display units ( $mbar, kPa, psi, inHg, inH_2O$ ) remotely.

To review official pressure sensor datasheets, IO-Link IODD files, and complete PN series electronic sensor catalogs, check the global IFM Electronic Sensor Directory.

To request a fast commercial quote or evaluate real-time regional warehouse stock availability for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
