Ramway Lithium Battery

ر.ق 0.00

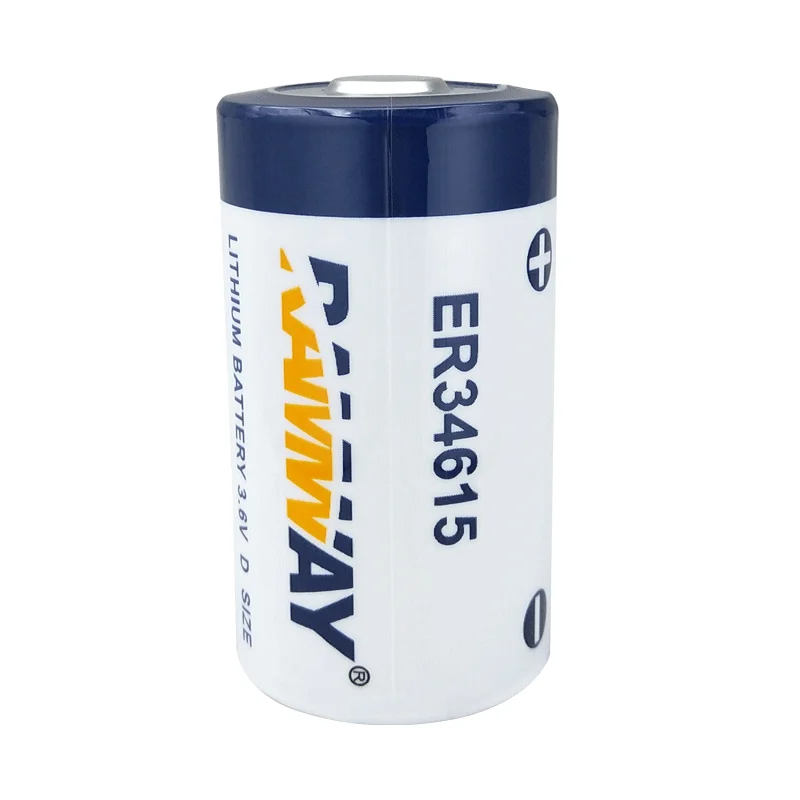

Er34615 Lithium Battery Ramway

  1. Nominal Voltage: 3.6V
  2. Nominal Capacity: 19Ah (at 2mA, +25°C, 2.0V cut-off)
  3. Max Continuous Discharge Current: 230mA
  4. Max Pulse Discharge Current: 400mA
  5. Operating Temperature Range: -60°C to +85°C
  6. Storage Temperature (Recommended): Up to +30°C
  7. Typical Weight: Approximately 107g
  8. Dimensions: Diameter 32.9mm, Height 61.5mm
Category: Brand:

The Ramway ER34615 is a high-capacity, non-rechargeable lithium-thionyl chloride (Li-SOCl₂) battery, designed for long-term applications requiring reliable power in compact form. Its D-size cylindrical design and robust construction make it ideal for industrial, metering, and IoT environments.

  • High Energy Density: Delivers long-lasting power for extended device operation.
  • Low Self-Discharge: Less than 1% per year at 20°C, ensuring long shelf life.
  • Wide Temperature Tolerance: Operates effectively in extreme temperatures, suitable for harsh environments.
  • Hermetic Glass-to-Metal Seal: Provides superior leak resistance and safety.
  • Non-Flammable Electrolyte: Enhances safety during operation.
  • Stainless Steel Container: Offers durability and resistance to corrosion
