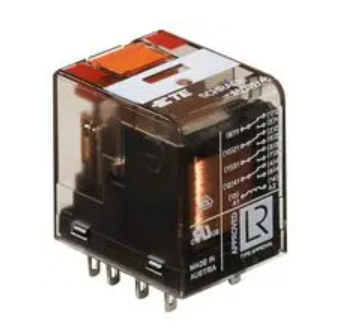

The PT570730 is a high-quality industrial-grade relay from the Schrack PT series, designed for reliable switching in control and automation systems. It features a 230V AC coil and a 4-pole double-throw (4PDT) contact configuration, making it suitable for applications requiring multiple circuits to be controlled simultaneously. The relay includes a mechanical status indicator and a manual test button for easy inspection and testing.
- Coil Voltage: 230V AC
- Contact Configuration: 4PDT (4 Form C – four changeover contacts)
- Contact Rating: Up to 6A at 250V AC
- Switching Capacity: Up to 3,000 VA
- Dielectric Strength: 2.5 kV between coil and contacts
- Insulation Class: Class F
- Mounting Style: Plug-in type for use with compatible relay sockets
- Status Indicator: Built-in mechanical flag for visual status check
- Manual Test Button: Allows on-site manual operation for testing
- Temperature Range: –40°C to +70°C
- Construction: Compact and durable housing for industrial environments
- Applications: Control panels, automation systems, HVAC equipment, and power switching
