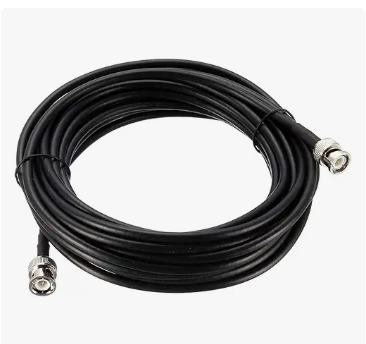

Rg58 Coaxial Cable

Rg58- Coaxial -Cable-in-control-electronics-qatar
Roll over image to zoom in
Click to open expanded view

ر.ق0.00

In stock

Rg58 Coaxial Cable

  1. Impedance: 50 Ω
  2. Inner Conductor: Solid or stranded copper (e.g., 19 strands of 0.18 mm wire)
  3. Dielectric: Solid polyethylene (PE)
  4. Shielding: Tinned copper braid (coverage varies, e.g., 89% with 120 strands of 0.10 mm wire)
  5. Outer Jacket: PVC, typically black
  6. Overall Diameter: Approximately 5 mm
  7. Capacitance: Approximately 28–31 pF/ft
  8. Attenuation: Varies with frequency; for example, around 3.3 dB per 100 ft at 50 MHz
  9. Maximum Operating Voltage: Up to 1900 Vrms
Category: Brand:

The RG58 Coaxial Cable is a versatile 50-ohm coaxial cable widely used for RF signal transmission in applications such as two-way radios, WLAN antennas, amateur radio, and test equipment. Its flexibility and moderate signal attenuation make it suitable for both commercial and hobbyist setups

  • Flexibility: Suitable for installations requiring tight bends and maneuverability.
  • Moderate Signal Loss: Acceptable attenuation for short to medium-length runs.\
  • Compatibility: Commonly used with BNC connectors for test equipment and radio systems.
  • Versatility: Applicable in various fields including telecommunications, networking, and broadcasting
