ROTARY ENCODER E6B2-CWZ6C – Industrial Incremental Shaft Encoder

The ROTARY ENCODER E6B2-CWZ6C (manufactured by Omron Automation) is a compact, high-precision incremental rotary encoder designed for motion control, position sensing, and speed feedback in automated industrial systems. Housed in a standard $40\text{ mm}$ outer diameter enclosure, this optical encoder converts rotary shaft motion into digital quadrature output signals.

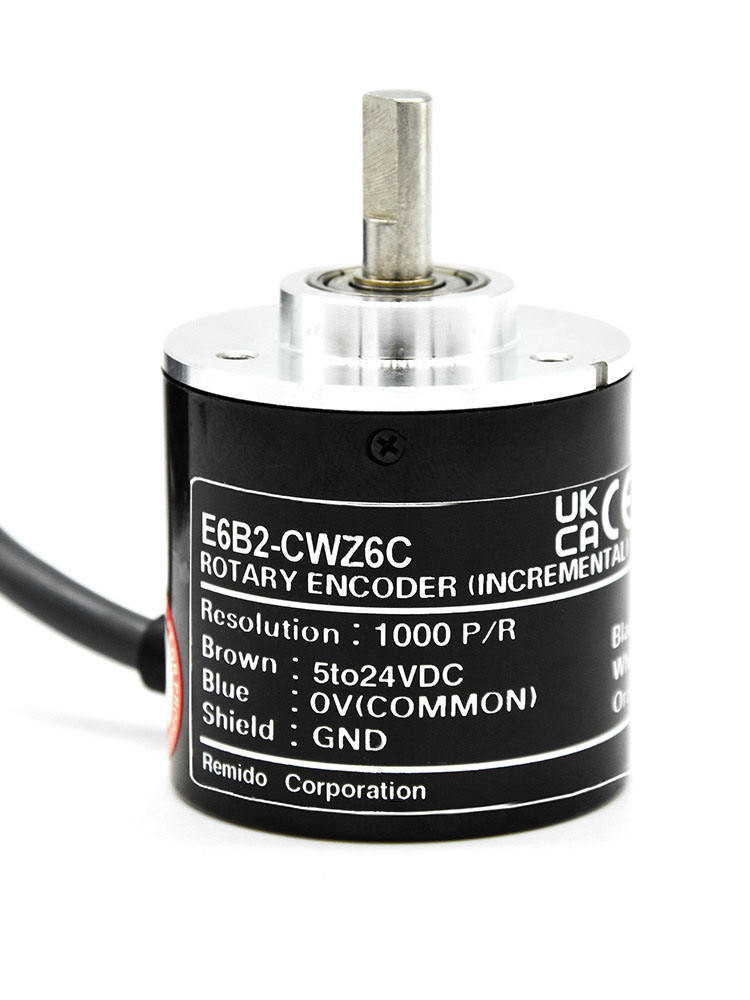

Featuring an NPN open-collector output circuit, the ROTARY ENCODER E6B2-CWZ6C operates across a wide power supply voltage range ( $5\text{ to }24\text{ VDC}$ ), making it compatible with PLCs, microcontrollers, CNC controllers, and digital counters. As shown on the product housing, the unit incorporates a $6\text{ mm}$ flatted solid shaft, a pre-wired shielded cable, and clear terminal color coding for quick installation.

Key Features of the ROTARY ENCODER E6B2-CWZ6C

Quadrature 3-Channel Output (A, B, Z): Provides phase A and phase B signals offset by $90^\circ$ for position and direction sensing, alongside a Phase Z index pulse for zero-position origin calibration.
Wide Operating Voltage ( $5\text{--}24\text{ VDC}$ ): Offers seamless integration with $5\text{V}$ logic levels (Arduino/TTL) as well as $12\text{V}$ or $24\text{V}$ industrial PLC input modules.
NPN Open-Collector Output: Capable of switching up to $30\text{ VDC}$ load voltages at $35\text{ mA}$ maximum sink current, protected by built-in output short-circuit protection.
High-Speed Frequency Response: Handles maximum response frequencies up to $100\text{ kHz}$ at speeds up to $6,000\text{ RPM}$ .
Rugged Mechanical Construction: Built with an aluminum body and stainless steel shaft ( $6\text{ mm}$ ) capable of withstanding heavy shaft loads ( $30\text{ N}$ radial, $20\text{ N}$ thrust).

Common Applications and Industrial Usage

The versatility and high measurement accuracy of the ROTARY ENCODER E6B2-CWZ6C make it suitable for a wide range of industrial automation and feedback applications:

Conveyor & Material Handling: Tracks belt speed, material distance, and item positioning for automated packaging lines.
CNC & Machine Tools: Provides real-time rotary position feedback for stepper and servo motors driving lead screws and turntables.
Robotics & Motion Control: Measures precise angular displacement and rotational speed in robotic arms and automated guided vehicles (AGVs).
Length Measurement Systems: Measures continuous lengths of paper, textile, wire, or film in printing and extrusion processes.

Technical Specifications

The electrical, mechanical, and operational parameters for the ROTARY ENCODER E6B2-CWZ6C are summarized below:

Parameter Specification	Technical Details & Operational Values
Component Classification	Optical Incremental Rotary Encoder
Primary Target Keyword	ROTARY ENCODER E6B2-CWZ6C
Manufacturer / Series	Omron Automation / E6B2 Series
Outer Diameter / Shaft Diameter	$40\text{ mm}$ Body / $6\text{ mm}$ Solid Shaft
Resolution Options (P/R)	$10\text{ to }2,000\text{ Pulses/Revolution}$ (e.g., $1000\text{ P/R}$ )
Supply Voltage ( $V_{CC}$ )	$5\text{ to }24\text{ VDC}\ (\pm 15\%)$
Current Consumption	$80\text{ mA}$ max.
Output Type & Channels	NPN Open-Collector / Phases A, B, Z
Max. Sink Current / Voltage	$35\text{ mA}$ max. / $30\text{ VDC}$ max.
Max. Response Frequency	$100\text{ kHz}$
Max. Permissible Speed	$6,000\text{ RPM}$
Shaft Loading Capacity	Radial: $30\text{ N}$ / Thrust: $20\text{ N}$
Protection & Rating	IP50 (IEC 60529), Power Polarity & Output Short Protection
Operating Temperature	$-10^\circ\text{C to }+70^\circ\text{C}$ (No icing)

Wiring Color Code Guide

Proper wiring is critical to avoid damaging internal transistor outputs:

Brown: $5\text{ to }24\text{ VDC}$ Power Supply ( $+V_{CC}$ )
Blue: $0\text{V}$ (Common / GND)
Black: Phase A Signal Output
White: Phase B Signal Output
Orange: Phase Z Signal Output (Index pulse)
Shield Wire: Ground (Connect to earth/chassis ground to prevent noise interference)

Operating Guidelines and Best Practices

INSTALLATION TIP: Always use a flexible coupling (such as Omron E69-C06B) when connecting the encoder shaft to a motor or driven shaft to prevent mechanical stress from axial or radial misalignment.

Pull-Up Resistors: Since the ROTARY ENCODER E6B2-CWZ6C features an NPN open-collector configuration, external pull-up resistors (typically $1\text{ k}\Omega\text{ to }4.7\text{ k}\Omega$ ) must be connected between the signal lines (A, B, Z) and the logic supply voltage if the controller does not have built-in internal pull-ups.

Noise Reduction: Route encoder signal cables separately from high-voltage AC power lines and motor drive cables to prevent electromagnetic noise corruption.
