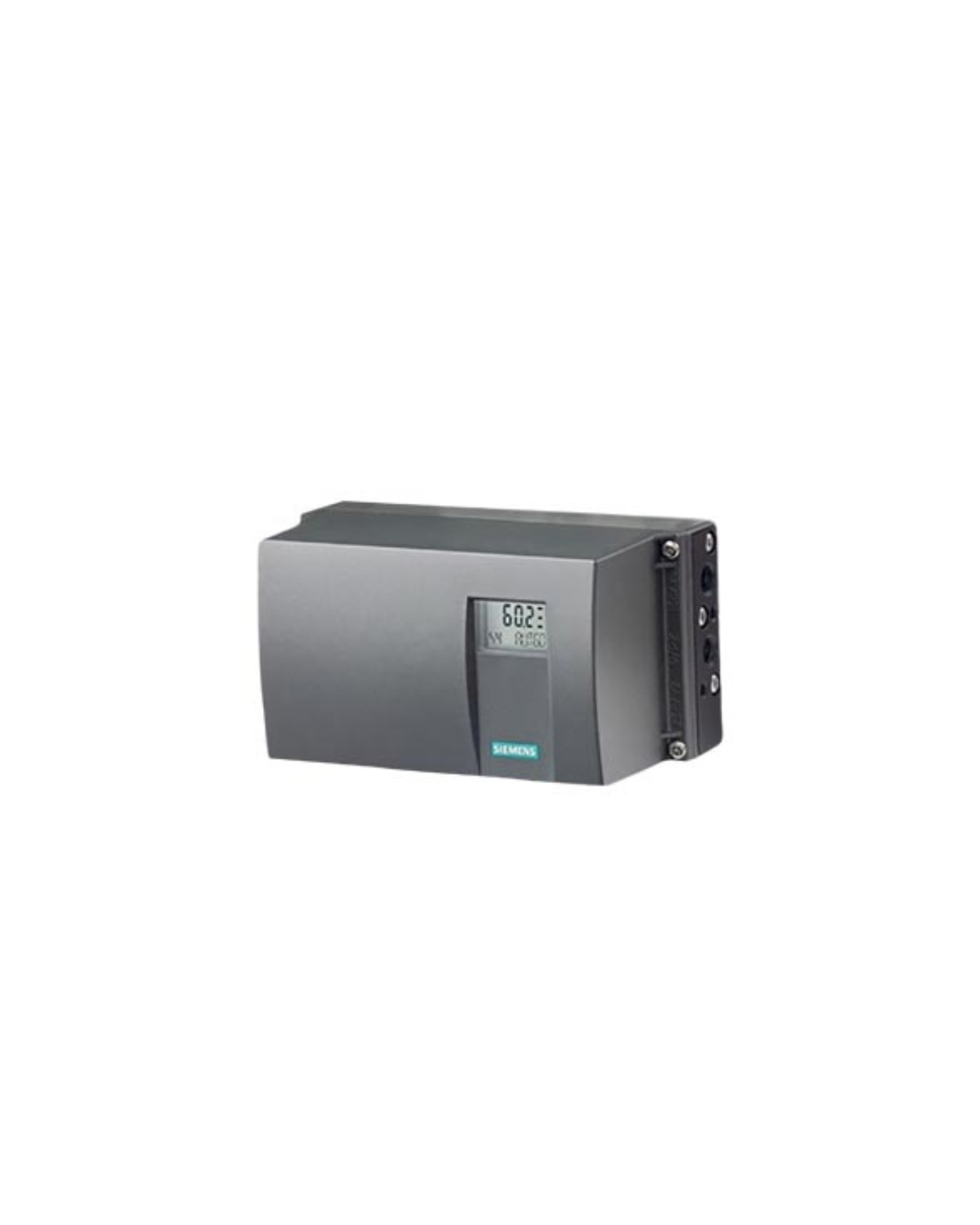

Siemens SIPART PS2 Electropneumatic Positioner (6DR5010-0NG00-0AA0)
The Siemens SIPART PS2 6DR5010-0NG00-0AA0 is a highly advanced, intelligent electropneumatic positioner engineered for the precise control of linear and part-turn pneumatic actuators. Renowned globally as a benchmark in process automation, the SIPART PS2 utilizes a state-of-the-art microprocessor system to deliver unmatched control accuracy, minimal diagnostic maintenance, and exceptionally low air consumption. This specific configuration features a single-acting pneumatic profile housed in a rugged, polycarbonate enclosure, providing a reliable control interface for modulating valves across severe chemical, water, and manufacturing process lines.
Key Features
-
Advanced Smart Diagnostics: Continuously monitors actuator behavior, valve seat friction, stroke count, and ambient conditions to provide predictive maintenance warnings before a fault occurs.
-
Minimal Pneumatic Air Consumption: Engineered with a highly efficient piezo-valve switching array that only consumes air when adjusting the valve position, reducing operating costs drastically compared to conventional positioners.
-
Simple Push-Button Initialization: Features a fully automated initialization routine that auto-calibrates travel span, tight-closing parameters, and control parameters in minutes via the integrated LCD and three-button interface.
-
Rugged Makrolon Polycarbonate Housing: Enclosed in a flame-retardant, impact-resistant fiberglass-reinforced polycarbonate shell designed to withstand chemical vapor and harsh industrial environments.
-
Online Adaptive Control: Employs dynamic algorithm matching that automatically adjusts the positioner’s gain behavior to compensate for changing process pressures or mechanical actuator aging.
Technical Specifications
| Feature | Specification |
| Model Number | 6DR5010-0NG00-0AA0 |
| Brand / Range | Siemens / SIPART PS2 |
| Product Type | Intelligent Electropneumatic Positioner |
| Actuator Compatibility | Single-Acting (Linear and Part-Turn Actuators) |
| Input Signal | 4 to 20 mA (Analog Control Loop) |
| Enclosure Material | Fiber-Reinforced Polycarbonate (Makrolon) |
| Pneumatic Connections | G 1/4 Threaded Internal Ports |
| Electrical Connections | M20 x 1.5 Cable Gland Entry |
| Ingress Protection | IP66 / NEMA 4X Rated |
| Display & Interfaces | Integrated 1-Line LCD Display with 3 Local Operation Keys |
Applications
-
Chemical & Petrochemical Processing: Controlling critical control valves managing erratic chemical flow pathways, distillation loops, and fluid blending.
-
Water & Wastewater Treatment: Governing single-acting pneumatic actuators on automated gate valves, filtration loops, and chlorination dosing pumps.
-
Power Generation Utilities: Regulating steam dampers, cooling tower bypass feeds, and turbine auxiliary control valves.
-
Food & Beverage Production: Providing precise, sanitary-level position regulation over pneumatic valve arrays in processing pasteurization or CIP (Clean-In-Place) systems.
