Ai-Thinker VC-02-Kit

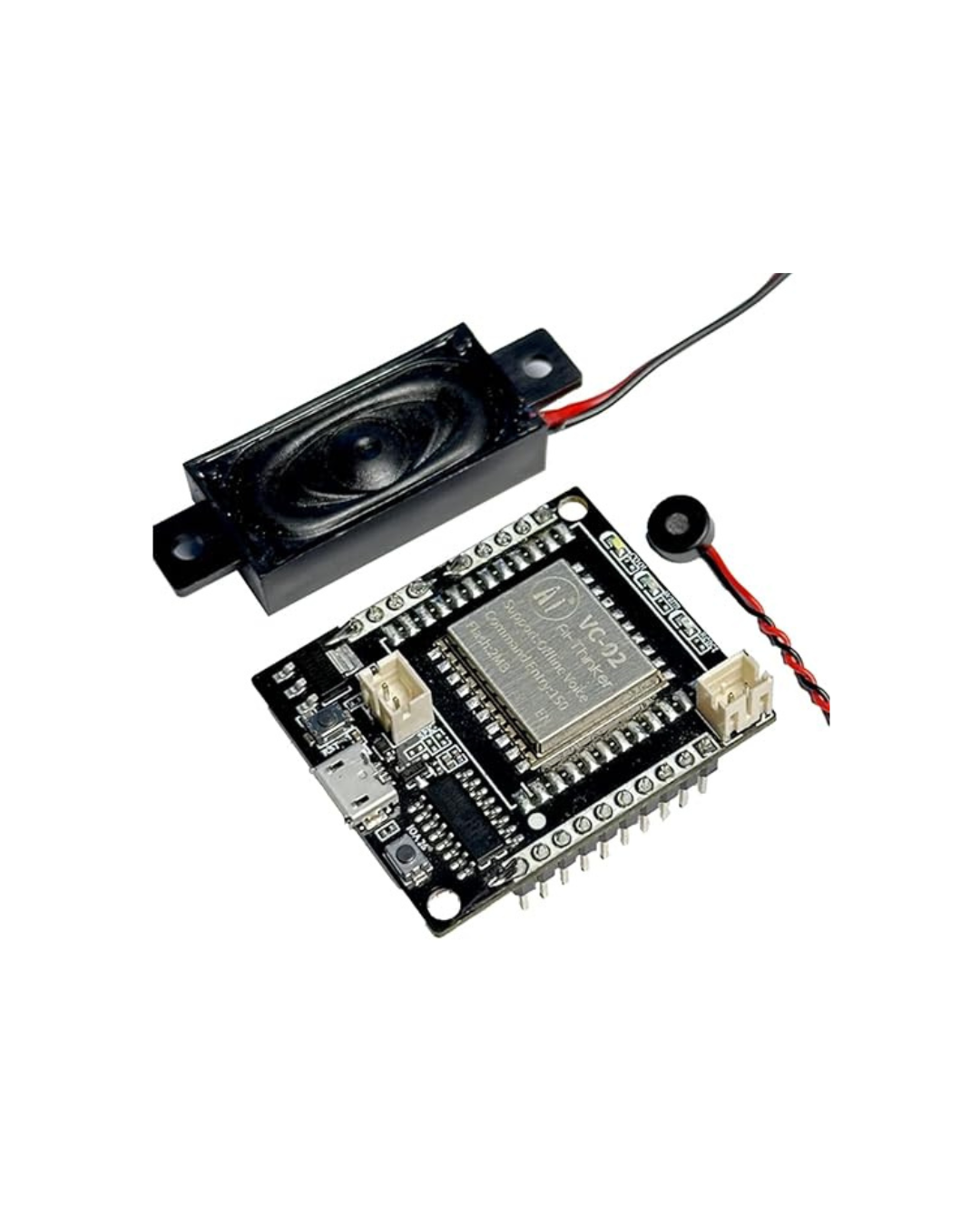

Ai-Thinker VC-02-Kit – Pure Offline Voice Recognition Development Board

The Ai-Thinker VC-02-Kit is a highly efficient, ultra-low-cost developmental platform engineered for offline speech recognition and hardware control. Designed by Shenzhen Ai-Thinker Technology Co., Ltd., this kit eliminates the need for internet connection or cloud-based microservices, ensuring near-instantaneous command processing (under 100ms response times) and complete localized data privacy. The core engine driving the Ai-Thinker VC-02-Kit is the cutting-edge Unisound US516P6 voice processor, configured with a high-speed processor core and built-in hardware accelerators explicitly optimized for heavy voice algorithms. Out of the box, the Ai-Thinker VC-02-Kit functions as a comprehensive, plug-and-play prototyping environment that ships directly with external microphone and speaker sub-modules, letting developers rapidly configure smart, voice-activated applications.

Key Features of Ai-Thinker VC-02-Kit

Deeply Integrated Offline Processing: Operates flawlessly entirely offline without requiring any Wi-Fi, Bluetooth, or cellular internet routing.
Massive 150-Command Vocabulary: Supports local identification of up to 150 custom voice commands and adjustable wake words in both English and Chinese.
Advanced Neural Hardware Acceleration: Driven by a 32-bit RISC architecture core ticking at 240 MHz, paired with a specialized DSP instruction set and a high-performance complex FFT/IFFT hardware accelerator.
Onboard USB-to-TTL Bridge: Houses a CH340C serial port to USB chip directly on the PCB, facilitating convenient code debugging, power delivery, and effortless firmware flashing via a standard PC connection.
Dynamic Visual Status LEDs: Outfitted with 3 multi-colored status indicators (React in blue, Warm in orange, Cool in white) to provide interactive operational feedback for wake states and triggers.
Acoustically Optimized Input/Output: Supports an analog microphone with a high Signal-to-Noise Ratio ( $ge 94text{ dB}$ ) alongside dual-channel DAC output for crisp vocal playbacks.
Rich Peripheral Ecosystem: Offers highly configurable I/O breakouts, facilitating integration through standard dual-row pinouts.

Applications and Usage of Ai-Thinker VC-02-Kit

The exceptional offline versatility and low power footprint make the Ai-Thinker VC-02-Kit an excellent candidate for the following integration environments:

Smart Home Automation: Serves as a local speech commander for wall switches, 86-boxes, relay control modules, and smart lighting grids.
Intelligent Household Appliances: Easily integrated into small domestic equipment like smart fans, air conditioning controllers, automated coffee brewers, and kitchen range hoods.
Robotics & DIY Projects: Acts as a master vocal control processing peripheral for educational STEM kits, gesture-activated machinery, and companion electronics.
Interactive Educational Toys: Powers low-cost speaking toys, automated dolls, and speech-responsive instructional games without forcing cloud subscription frameworks.
Industrial & Hands-Free Equipment: Provides non-contact, safety-first terminal operations inside manufacturing zones where hands-free instrument toggling is mandatory.

Technical Specifications

Parameter	Specification Details
Product Model	Ai-Thinker VC-02-Kit (Base Board Module: VC-02)
Processor Core	32-bit RISC core operating at 240 MHz with DSP & FPU units
FFT Accelerator	Up to 1024-point complex / 2048-point real FFT/IFFT
Onboard Storage	242 KB high-speed internal SRAM + 2 MB built-in Flash
Operating System	Embedded lightweight Real-Time Operating System (RTOS)
Language Support	Dual support for English and Chinese dialects
Input Supply Voltage	5V DC via Micro USB or Header pins
Current Consumption	Active Current: $56.1text{ mA} - 232text{ mA}$ (Standby $56text{ mA}$ )
Hardware Interfaces	UART, I2C, PWM, DAC output, and 5 external GPIOs
Default Baud Rates	UART1: 115200 bps (Max 3 Mbps) \| UART0: 57600 bps
Form Factor Package	DIP-19 header format ( $2.54text{ mm}$ spacing)
Operating Temperature	$-40^circtext{C}$ to $+85^circtext{C}$

Benefits of Choosing the Ai-Thinker VC-02-Kit

No Internet Dependencies: Operates completely safe from external Wi-Fi dropouts, network lags, or server outages.
High Noise Immunity: Incorporates noise-robust algorithms to maintain command detection rates up to 98% even with background distractions up to 50dB.
Web-Based Customization: Leverages the free web interface from Ai-Thinker to visually edit custom triggers, compile custom firmware, and export SDK packages without deep coding skills.
Compact Footprint Deployment: The small dimension design allows space-restricted integrations within tiny junction spaces, lamp holders, or structural chassis recesses.

Prototyping and Operational Guidelines of Ai-Thinker VC-02-Kit

Powering Up: Supply power directly through a stabilized 5V micro-USB connection capable of providing over 500mA during active speaker peaks.
Wake Word Verification: Say the pre-compiled wake word to open listening cycles, observing if the blue React LED glows to indicate high-sensitivity voice capture windows.
Custom Firmware Loading: Connect to your PC via the USB port, build code using the online Ai-Thinker tool, and flash the module using serial upload protocols via the native CH340C driver link.

For advanced configuration details and firmware flashing tools, you can consult the official developer files on the Ai-Thinker Documentation Portal.
