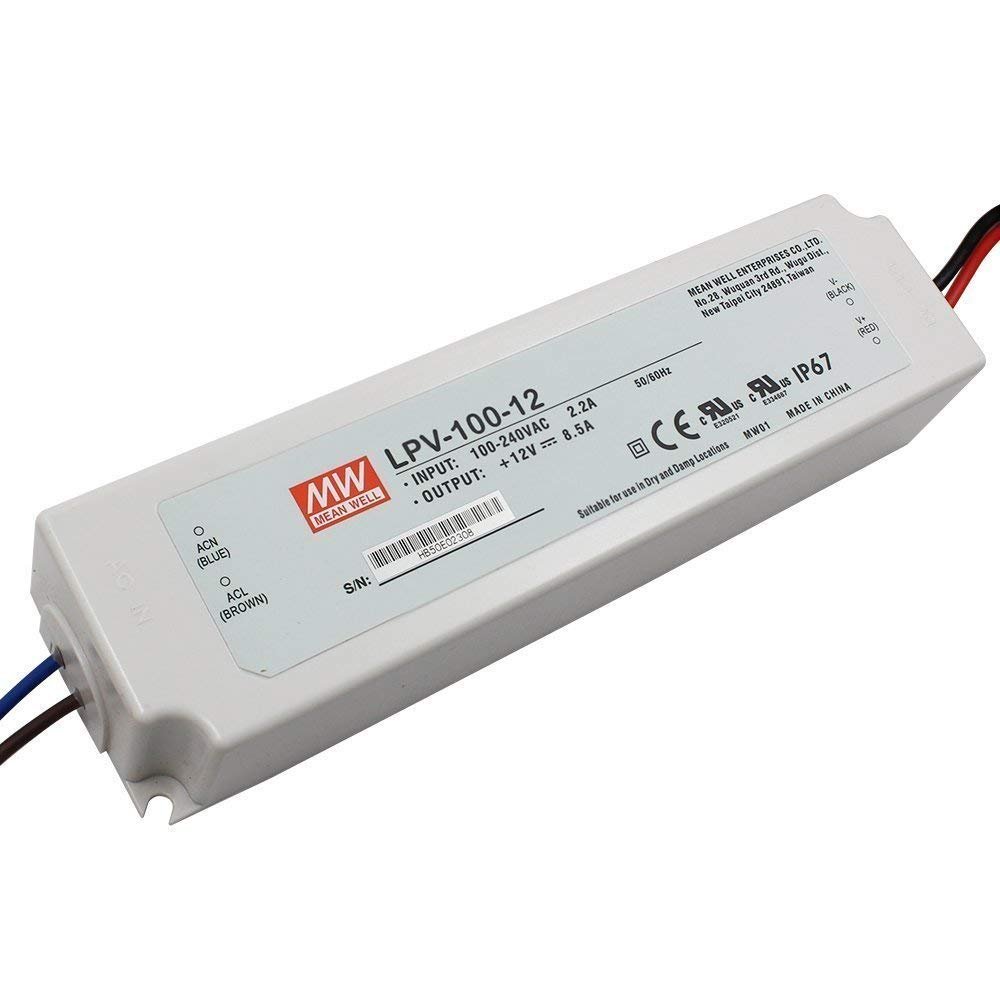

The LPV-100-12 is a 100W constant voltage power supply that provides a reliable 12V DC output at up to 8.5A. Enclosed in an IP67-rated waterproof casing, this unit is well-suited for LED lighting and other low-voltage DC applications in both indoor and outdoor environments.
- Output Voltage: 12V DC
- Output Current: 8.5A
- Output Power: 102W
- Input Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
- Efficiency: Up to 87%
- Ripple & Noise: ≤120mVp-p
- Protection Modes: Short circuit, overload, over-voltage
- Cooling: Free air convection (fanless design)
- Enclosure Rating: IP67 (waterproof and dustproof)
- Operating Temperature Range: -25°C to +70°C (with derating)
- Dimensions: 190 × 52 × 37 mm
- Weight: Approximately 620g
- Isolation Voltage: 3000VAC input to output
- MTBF: >680,000 hours (MIL-HDBK-217F standard)
- Warranty: 2 years
