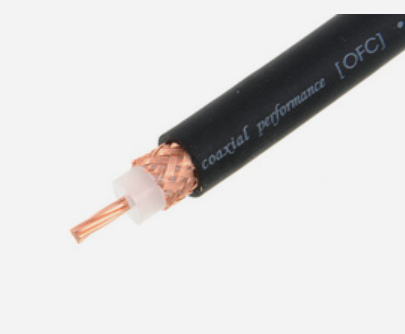

Rg213 Coaxial Cable

ر.ق0.00

In stock

Rg213 Coaxial Cable

  1. Impedance: 50 Ω ±2 Ω
  2. Inner Conductor: 7-strand bare copper (7 × 0.75 mm)
  3. Dielectric: Solid Polyethylene (PE), diameter ~7.25 mm
  4. Shielding: Bare copper braid with 95–98% coverage
  5. Outer Jacket: PVC or Low Smoke Halogen Free (LSHF), diameter ~10.3 mm
  6. Attenuation (approximate values per 100 meters):

50 MHz: 4.5 dB

100 MHz: 6.8 dB

200 MHz: 10.0 dB

400 MHz: 14.5 dB

1000 MHz: 24.7 dB

7. Maximum Operating Voltage: Up to 5000 Vrms

8. Operating Temperature Range: -40°C to +85°C

Category: Brand:

The RG213 Coaxial Cable is a robust, low-loss 50-ohm cable designed for high-power and long-distance RF transmission. Its durable construction and excellent electrical properties make it ideal for applications such as amateur radio, broadcasting, military communications, and test equipment.

  • Low Signal Loss: Ensures high-quality signal transmission over long distances.
  • High Power Handling: Suitable for applications requiring up to 5000 Vrms.
  • Durability: Robust construction with high braid coverage for enhanced shielding and mechanical strength.
  • Versatility: Compatible with various connectors (e.g., PL259, N-type) for diverse applications.
