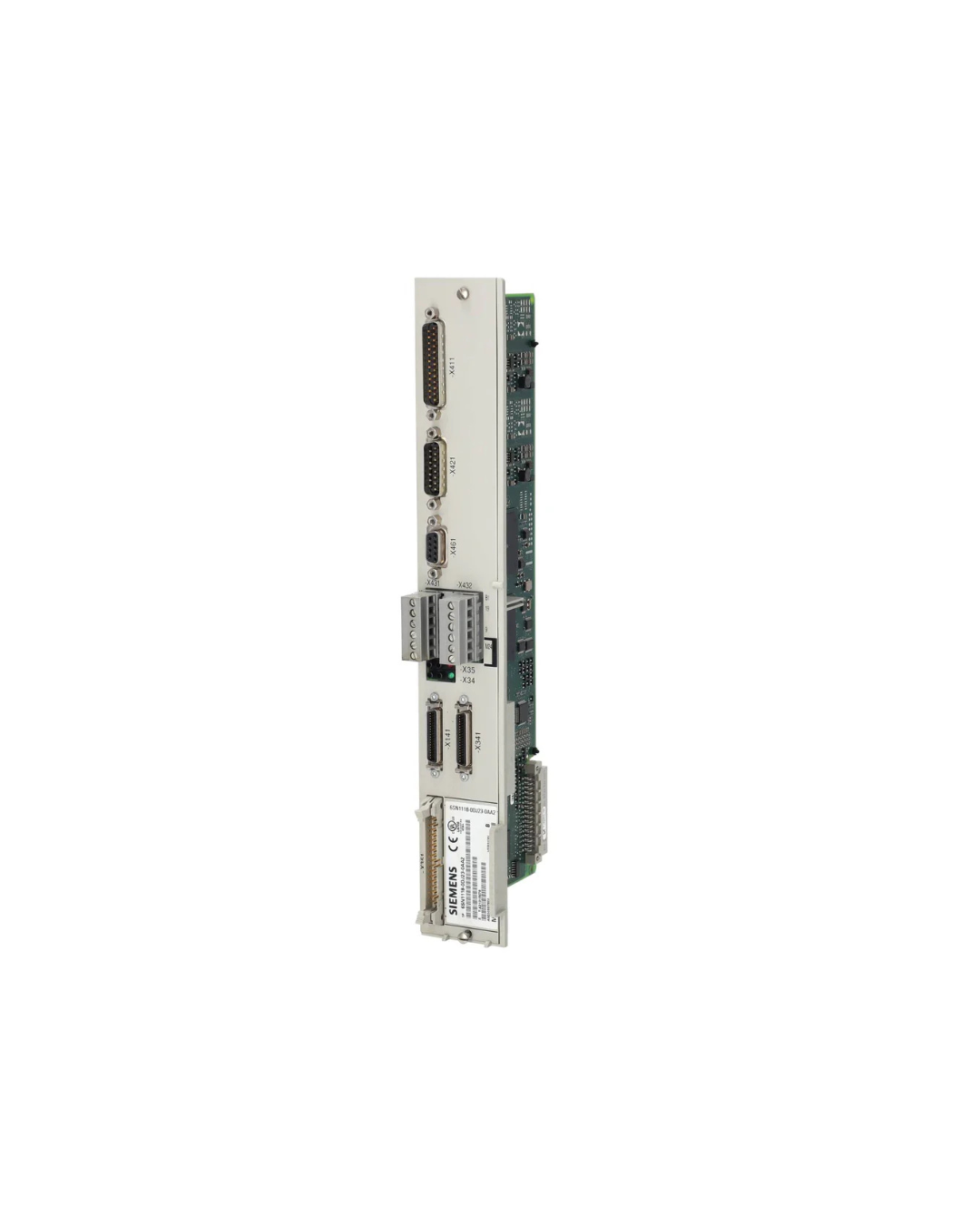

Siemens SIMODRIVE 611 Digital Control Loop Block (6SN1118-0DJ23-0AA2)

The Siemens 6SN1118-0DJ23-0AA2 is a high-performance, dual-axis digital closed-loop control plug-in module belonging to the legacy SIMODRIVE 611 drive chassis system. Engineered for high-precision CNC machining and rapid-response motion control, this digital control board plugs directly into SIMODRIVE power modules to govern up to two independent axes simultaneously. It supports high-resolution absolute value encoders and utilizes advanced feedforward algorithms to deliver ultra-precise speed and position regulation for feed drives and main spindle motors.

Key Features

Dual-Axis Independent Regulation: Multi-channel board design capable of computing synchronous or distinct real-time velocity and position loops for two separate motor drives.
Absolute Encoder Interface (EnDat): Features integrated feedback connectivity for absolute value encoders, eliminating the need for axis homing cycles upon system power-up.
Rapid Direct Drive Dynamic Response: Utilizes high-speed digital signal processors (DSP) to minimize loop processing times, ensuring smooth surface finishes and crisp positioning accuracy on CNC machinery.
Seamless Drive Bus Modular Integration: Easily slots into the standardized SIMODRIVE 611 frame architecture and communicates directly via the system’s internal drive bus layout.
Rugged Diagnostic Architecture: Monitored via centralized SINUMERIK CNC controllers to deliver precise real-time diagnostic codes regarding tracking errors, encoder signal loss, or internal overtemperatures.

Technical Specifications

Feature	Specification
Model / Reference	6SN1118-0DJ23-0AA2
Brand / Family	Siemens / SIMODRIVE 611
Product Type	Digital Closed-Loop Control Plug-in Block
Axis Support	2 Axes (Dual-Axis Control)
Feedback Protocols	Absolute Encoder (EnDat interface) / Sin/Cos 1Vpp
Control Signal Class	High-performance Digital Drive Bus
Form Factor	Internal Plug-in Module Card
Standards & Certifications	CE, UR Recognized, EAC, RoHS Compliant

Applications

CNC Machine Tools & Milling Centers: Regulating the X, Y, or Z high-speed feed axes on high-precision SINUMERIK-driven machining plants.
Automated Automotive Production Lines: Governing multi-axis robotic gantry positions, pick-and-place indexing systems, and heavy-duty stamping presses.
Textile & Printing Machinery: Ensuring synchronized, tension-controlled multi-motor line speeds across sensitive continuous material processing lines.
Industrial Plant Retrofitting: Serving as a crucial, drop-in replacement spare part to extend the operating lifetime of existing SIMODRIVE 611 infrastructure.
