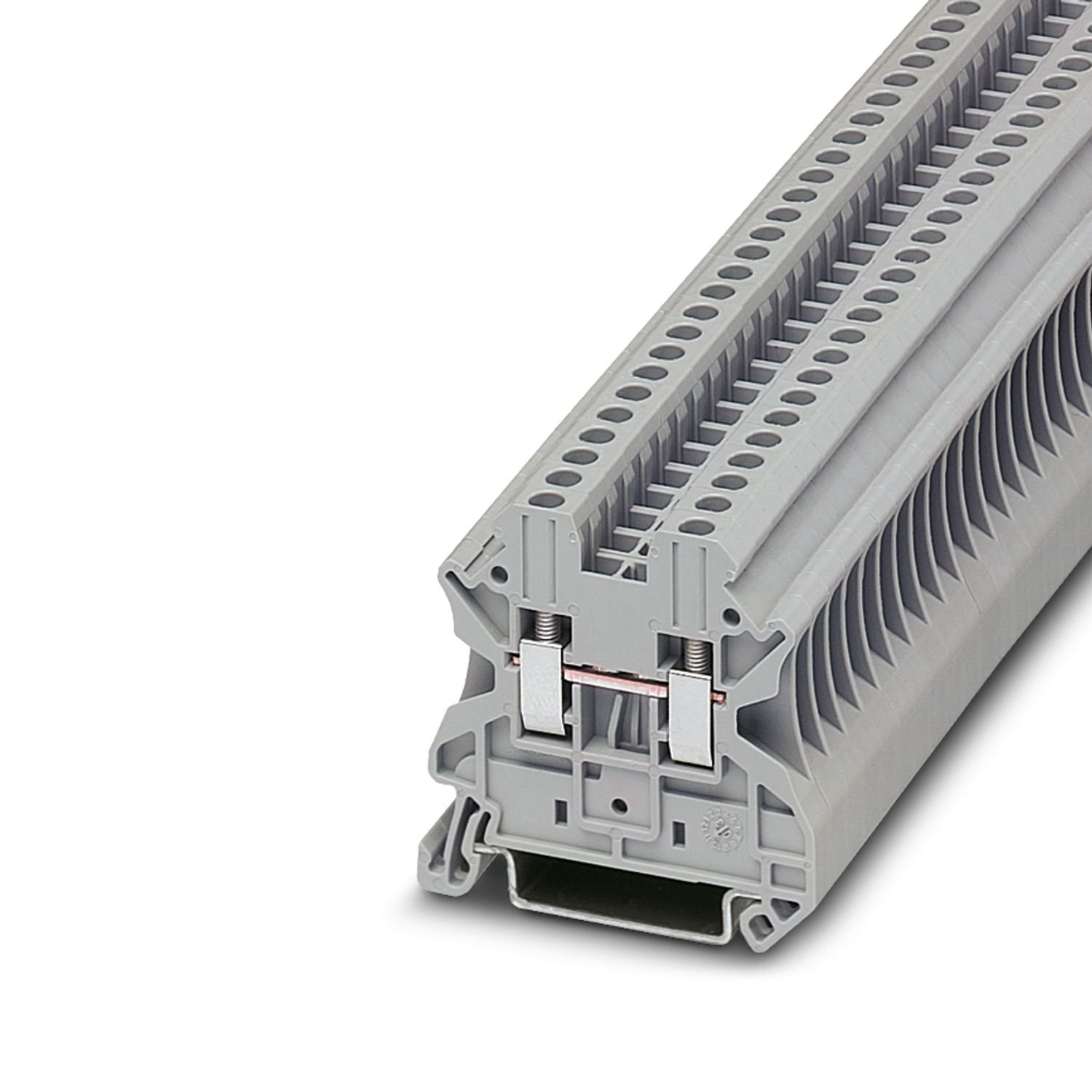

The 3044076 UT 2.5 is a compact, screw-clamp terminal block designed for efficient, reliable wire connection in control panels and distribution systems. It supports DIN-rail mounting and accommodates a wide range of conductor sizes.
- Type: 2-position feed-through terminal block
- Connection Method: Screw clamp with closed screw shaft
- Nominal Voltage: 1000 V
- Nominal Current: 24 A (up to 32 A with suitable conductor)
- Rated Cross-Section: 2.5 mm²
- Conductor Range: 0.14–4 mm² (solid/stranded), AWG 26–12
- Supports Dual Conductor Entry: Up to 2×1.5 mm² per terminal
- Stripping Length: 9 mm
- Tightening Torque: 0.5–0.6 Nm (M3 screw)
- Mounting Type: DIN rail (35 mm)
- Housing Material: Polyamide, flame-retardant (UL 94 V-0)
- Surge Voltage Rating: 8 kV
- Pollution Degree: 3
- Overvoltage Category: III
- Ingress Protection: IP20
- Dimensions: Width ~5.2 mm, Height ~47.7 mm, Depth ~46.9 mm
- Color: Grey
