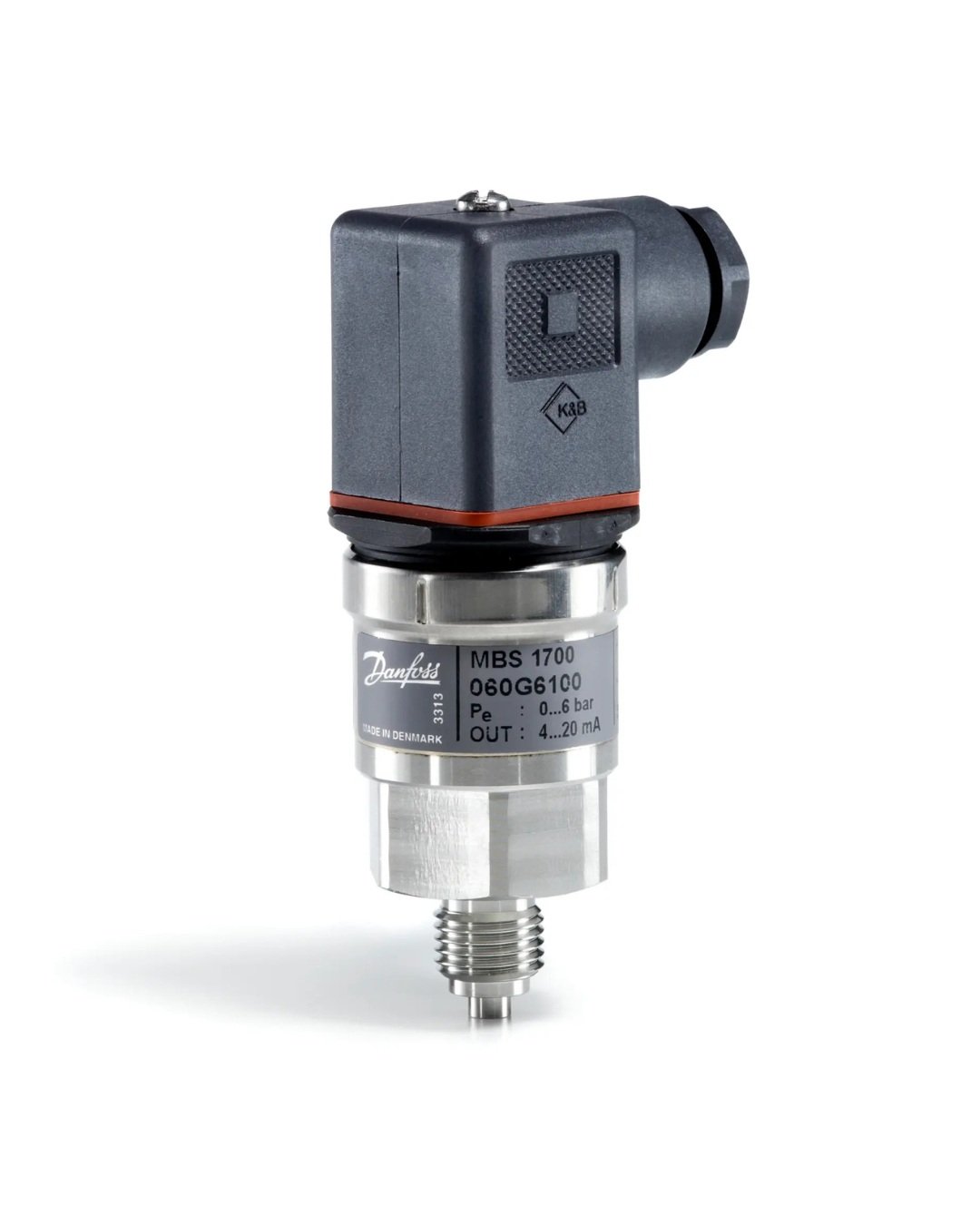

Danfoss Pressure Transmitter 060G7636 MBS1700 – Premium 0–10 Bar Industrial Measuring Sensor
The Danfoss Pressure Transmitter 060G7636 MBS1700 is a highly accurate, compact industrial sensor designed for general-purpose applications that require reliable pressure tracking under challenging environmental conditions. Engineered by Danfoss, a global innovator in sensing technologies, this relative (gauge) transmitter offers consistent monitoring for medium-duty commercial and industrial equipment. It converts physical fluid or gas pressure into a precise, linear current loop signal, making it a critical tool for automation networks, booster pumps, and facility diagnostics.
Constructed with an asset-grade, acid-resistant stainless steel chassis, the Danfoss Pressure Transmitter 060G7636 MBS1700 provides an exceptional defense against internal corrosion and mechanical fatigue. Unlike lower-tier variations that rely on standard electrical plugs, this distinct 060G7636 model features a built-in, 2-meter factory-screened cable connection rated for an elite IP67 ingress protection level. This design allows it to safely operate when exposed to heavy moisture, direct washdowns, or damp environments.
Key Features of Danfoss Pressure Transmitter 060G7636 MBS1700
-
0 to 10 Bar Operating Pressure Span: Designed for measuring a pressure spectrum of 0 to 10 bar (0 to 145 psi relative gauge reference), perfect for low-to-medium pressure machinery.
-
Industrial 4–20 mA Current Loop Output: Employs a standard 2-wire current loop architecture that enables long-distance transmission without signal loss.
-
Integrated 2-Meter Screened Cable: Features a direct-molded, 79-inch (2-meter) insulated cable that removes the risk of water ingress common with plug-in sockets.
-
IP67 Rated Stainless Steel Enclosure: Built from AISI 316L acid-resistant stainless steel to keep internal electronics completely dust-proof and safe from brief water submersion.
-
Fully Digitally Compensated Electronic Design: Built-in digital calibration eliminates measurement drifting caused by shifts in fluid temperatures, guaranteeing stable accuracy.
-
Elite Vibration and Shock Stability: Highly structural interior engineering lets the sensor handle constant machine vibrations and mechanical pulses without cracking or losing calibration.
Applications and Usage of Danfoss Pressure Transmitter 060G7636 MBS1700
The robust design, high accuracy, and strong casing of the Danfoss Pressure Transmitter 060G7636 MBS1700 make it an important diagnostic component across many applications:
-
Commercial Air Compressors and Pneumatics: Tracks real-time pressure changes inside storage tanks and distribution lines to optimize compressor cycles.
-
Water Booster Pumps and Distribution: Installed across water lines, filtration centers, and irrigation pumps to maintain consistent fluid pressure.
-
HVAC/R Cooling Infrastructure: Extensively deployed in utility heating loops, chillers, and heat pumps to check refrigerant or liquid lines.
-
Industrial Automation Machinery: Provides reliable relative feedback loops for PLC systems, manufacturing hydraulics, and facility processing lines.
Technical Specifications
| Parameter Specification | Technical Details & Operational Metrics |
| Product Category Class | Industrial Heavy-Duty Fluid Pressure Sensor |
| Primary Target Keyword | Danfoss Pressure Transmitter 060G7636 MBS1700 |
| Danfoss Ordering Code | 060G7636 |
| Active Measuring Range | 0 to 10 bar / 0 to 145 psi |
| Pressure Reference Type | Gauge / Relative reference |
| Output Loop Current Signal | 4 – 20 mA (Standard 2-wire loop) |
| Electrical Connection Interface | Integrated 2-meter (79 in) Screened Cable |
| Pressure Port Configuration | G 1/4 male thread (DIN 3852-E / ISO 1179-2 Form E) |
| Wetted Material Construction | Acid-resistant AISI 316L Stainless Steel |
| Ingress Enclosure Shielding | IP67 protection rating |
| Sensor Accuracy Rating | le pm 0.5% FS typical / le pm 1.0% FS max |
| Maximum Static Overload Limit | 60 bar (870 psi) overload maximum |
| Ambient Temperature Operating Limits | -40°C to +85°C (-40°F to +185°F) |
Benefits of the Danfoss Pressure Transmitter 060G7636 MBS1700
-
Maintains High Operational Safety: High static overload handling ($60text{ bar}$) prevents system bursts and leaks, even during sudden pressure spikes or hydraulic shocks.
-
Simplifies External Wiring: The pre-wired, shielded cable design simplifies installation on remote pumps or tight manifolds, cutting down on setup time.
-
Outstanding Long-Term Value: Built with a durable stainless steel design and digital drift compensation, this transmitter provides years of maintenance-free service.
Installation Guidelines
-
Tighten with the Proper Tool: Always use a 27 mm wrench on the hex flats of the pressure port to tighten the transmitter. Do not turn the upper plastic housing, as this can break internal connections.
-
Verify Wiring Terminals: Connect the red wire to the positive supply line (+ supply) and the black wire to the negative loop interface (– common).
-
Keep Port Clear: Ensure the thread is aligned correctly with the G 1/4 port to prevent cross-threading and ensure a tight, leak-free seal.
To review official sensor dimension matrices, chemical compatibility charts, and complete hardware model datasheet sheets, check the global Danfoss Product and Sensing Solutions Directory.
To request a fast commercial quote or evaluate real-time regional warehouse stock availability for bulk procurement needs, please connect with our sales branch via the Control Qatar Contact Page.
