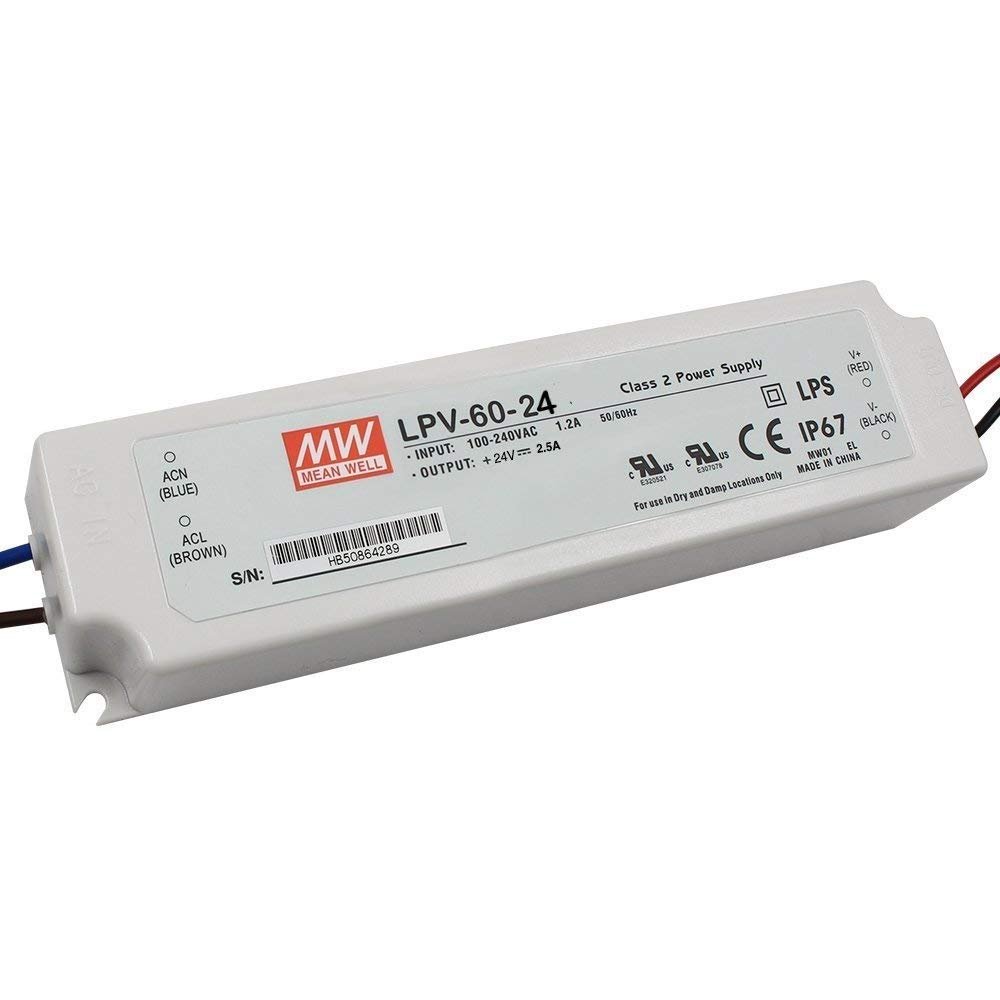

A 60 W constant‑voltage LED driver that delivers a stable 24 V DC output at up to 2.5 A. Housed in a waterproof IP67 enclosure, it is suitable for both indoor and outdoor LED lighting and signage where weather resistance is required.
- Output Voltage: 24 V DC
- Output Current: 2.5 A
- Output Power: 60 W
- Input Voltage Range: 90 – 264 VAC or 127 – 370 VDC
- Efficiency: Approx. 86–88% typical
- Ripple & Noise: ≤150 mVp‑p
- Protections: Short circuit, overload, over‑voltage
- Surge Capability: Withstands 300 VAC surge for 5 s
- Cooling: Free‑air convection, fanless
- Isolation: Class II, transformer isolated
- Certifications: Rated Class 2 LPS, full IP67 enclosure
- Operating Temperature: –30 °C to +70 °C
- Dimensions: 162.5 × 42.5 × 32 mm
- Mounting: Chassis or bracket mount
- Durability Tests: 100% full‑load burn‑in; MTBF ~4.5 million hours
- Warranty: 2 years
