RS232-RS485 Serial Data Convertor D Tech – Industrial-Grade Bidirectional Interface Adapter
The RS232-RS485 Serial Data Convertor D Tech (such as the DT-9003 model) is a highly reliable, commercial-grade communication accessory designed to bridge the gap between legacy RS232 single-ended ports and modern, long-distance RS485/RS422 balanced differential serial networks. In industrial automation and commercial networking, transmitting data via older RS232 systems is heavily restricted by distance. This specialized converter seamlessly translates signals between these differing electrical standards, allowing your computer or master controller to communicate with devices located up to 1200 meters away without data loss.

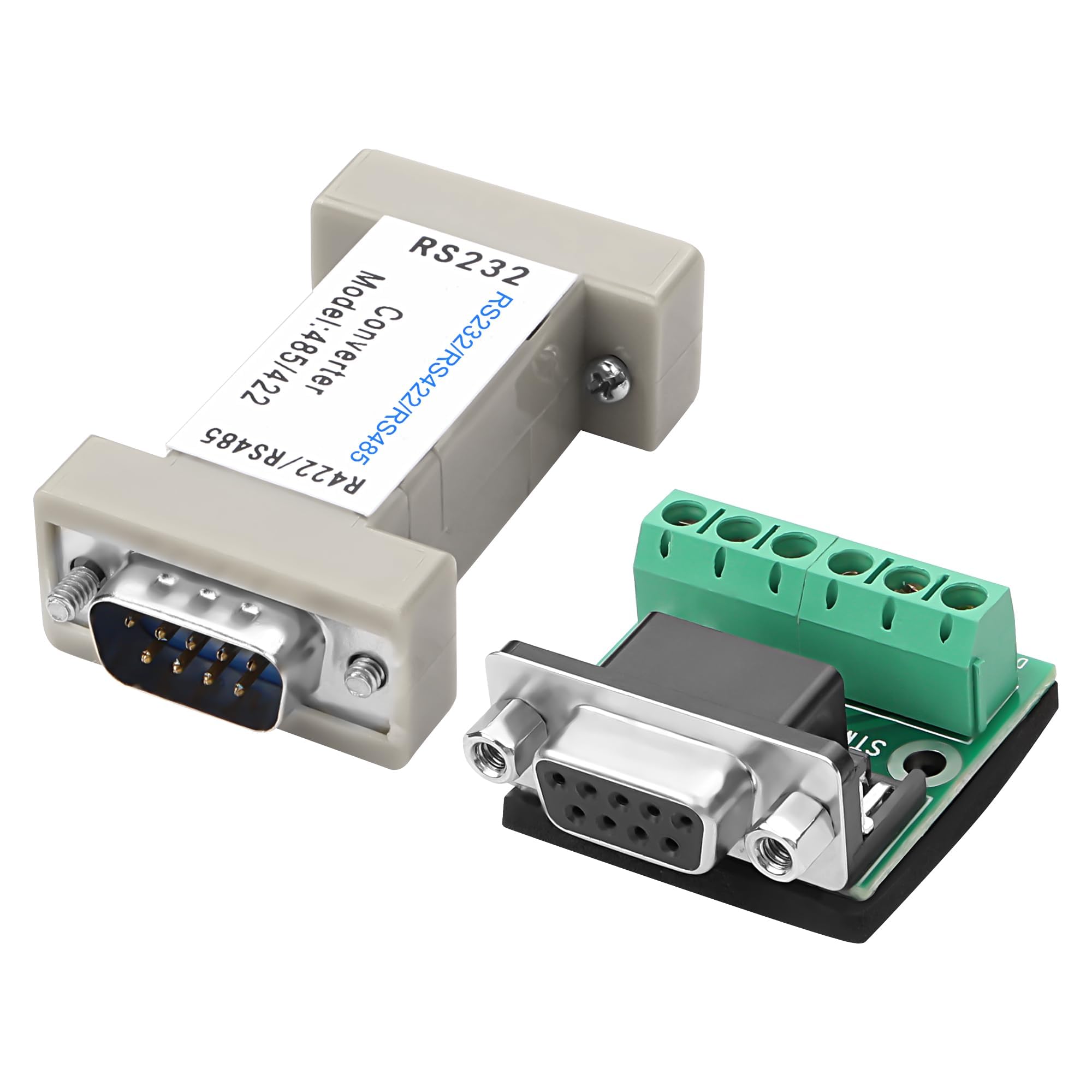

As displayed in the product image, the RS232-RS485 Serial Data Convertor D Tech features a compact, port-powered design composed of two physical pieces: a DB9 female interface on the RS232 side and a DB9 male output connector paired with a detachable, 6-position green screw-terminal board. It operates passively by harvesting power directly from the data lines of the RS232 port, eliminating the need for external power supplies, wall adapters, or complicated jumper settings.
Key Features of the RS232-RS485 Serial Data Convertor D Tech
-
Passive Port-Powered Technology: Utilizes an integrated “RS232 charge pump” to power the internal circuitry entirely from the TXD, RTS, and DTR lines. No external AC/DC power supply is required for standard runs.
-
Zero-Delay Auto Transceiver Conversion: Features an intelligent I/O circuit that automatically senses and controls the direction of data flow. It switches between send and receive modes instantly with zero delay, removing the need for manual handshake signals (like RTS or DTR).
-
Detachable 6-Terminal DB9 Block: Includes a modular terminal breakout board with easy-to-read markings (T/R+, T/R-, RXD+, RXD-, GND, VCC), allowing for fast, solderless wiring via twisted-pair or shielded cables.
-
Dual RS485 and RS422 Capability: Operates in both half-duplex (2-wire RS485) and full-duplex (4-wire RS422) modes.
-
Built-in Transient and Static Protection: Designed with integrated safety components to shield delicate computers and PLCs from high-voltage spikes and static discharges on communication lines.
Common Applications and Usage
The robustness and simple plug-and-play nature of the RS232-RS485 Serial Data Convertor D Tech make it an essential tool for several remote data systems:
-
Industrial Automation & PLC Interfacing: Connects standard PC serial ports directly to Programmable Logic Controllers (PLCs), human-machine interfaces (HMIs), and motor drives on the factory floor.
-
Access Control & Security Systems: Extends the wiring distance for magnetic card readers, biometric attendance machines, barcode scanners, and security cameras back to a central monitoring PC.
-
SCADA & Long-Distance Telemetry: Facilitates multi-point sensor arrays, automated weather stations, and power grid meters where devices are spread across a wide industrial yard.
-
Commercial POS Networks: Links cash registers, receipt printers, and digital scales over long cabling runs inside large retail centers or warehouses.
Technical Specifications
The table below outlines the core specifications of the standard RS232-RS485 Serial Data Convertor D Tech:
| Parameter Specification | Technical Details & Operational Ratings |
| Product Component Class | Passive / Port-Powered Serial Interface Converter |
| Primary Target Keyword | RS232-RS485 Serial Data Convertor D Tech |
| Standard Compliance | EIA/TIA RS-232C, RS-485, RS-422 |
| Electrical Interface | DB9 Female (RS232) | DB9 Male with 6-Position Terminal Block (RS485/422) |
| Working Communication Modes | Asynchronous Full-Duplex (RS422) or Half-Duplex (RS485) |
| Data Transmission Rate | 300 bps to 115.2 kbps |
| Maximum Transmission Distance | RS485/422: 1200 meters (3936 ft) | RS232: 5 meters (16 ft) |
| Transmission Medium | Twisted pair wire or shielded copper cabling |
| Optional Auxiliary Power | Up to 9V DC (via VCC terminal pin for extreme-distance active amplification) |
| Operating Temperature Range | -20degree C to 70degree C (-4degree F to 158degree F) |
| Relative Humidity Range | 5% to 95% (Non-condensing) |
Wiring and Connection Instructions
When setting up your RS232-RS485 Serial Data Convertor D Tech, use the terminal block markings for quick reference:
1. RS-485 Half-Duplex (Two-Wire) Connection
-
Connect the T/R+ (A+) terminal on the converter to the A+ (Data+) line of your target device.
-
Connect the T/R- (B-) terminal on the converter to the B- (Data-) line of your target device.
-
Connect the GND terminal to the ground reference of the device.
2. RS-422 Full-Duplex (Four-Wire) Connection
-
Connect T/R+ to RXD+ on the receiver.
-
Connect T/R- to RXD- on the receiver.
-
Connect RXD+ to TXD+ on the transmitter.
-
Connect RXD- to TXD- on the transmitter.
Safety & Optimization Tip: For extremely long communication lines subject to electromagnetic interference, it is highly recommended to bridge a 120Omeg a termination resistor across the farthest ends of the RS485 bus to prevent signal reflections.
