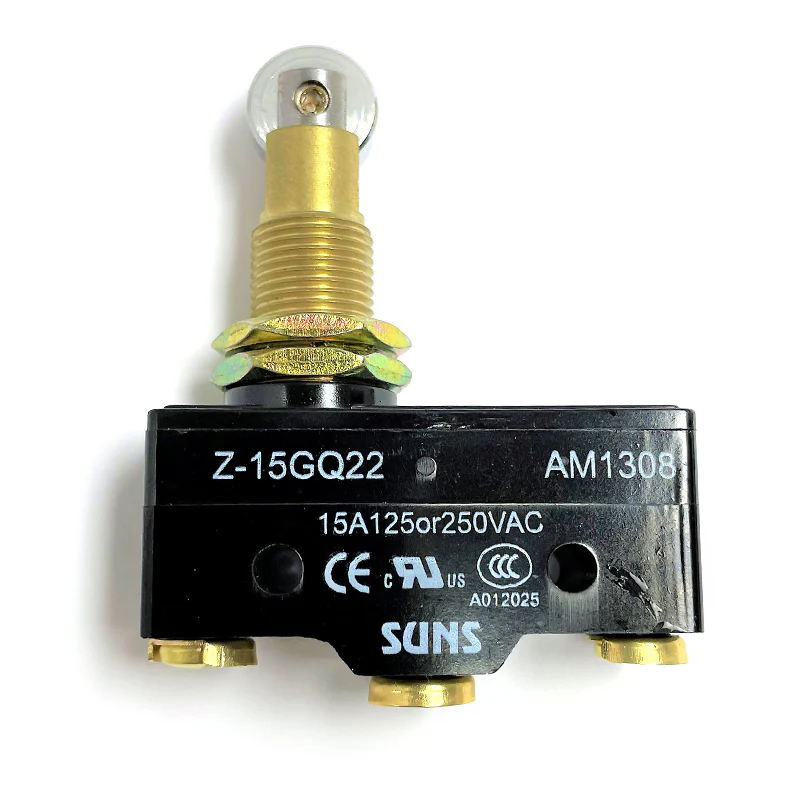

The Z-15GQ22B is a high-precision panel-mount limit switch featuring a roller plunger actuator. Designed for fast and reliable snap-action switching, it is ideal for use in industrial machinery, automation systems, and mechanical control applications.
- Model: Z-15GQ22B
- Actuator Type: Roller plunger (panel-mount with threaded shaft)
- Contact Type: SPDT (1 Normally Open + 1 Normally Closed)
- Rated Current:
- 15A @ 125/250V AC
- 10A @ 500V AC
- 15A @ 8–14V DC (lower current ratings at higher DC voltages)
- Contact Gap: 0.5 mm
- Operating Force: 2.45–3.43 N
- Release Force: ~1.12 N
- Travel Distances:
- Pretravel: ~0.4 mm
- Differential Travel: ~0.05 mm
- Overtravel: ~3.6 mm
- Operating Speed: 0.01 – 1 m/s
- Electrical Life: ≥ 500,000 operations
- Mechanical Life: ≥ 10 million operations
- Contact Resistance: ≤ 15 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Dielectric Strength: 1000–2000V AC
- Operating Temperature: –25°C to +80°C
- Protection Level: IP00
- Terminal Type: Screw terminals (M4)
