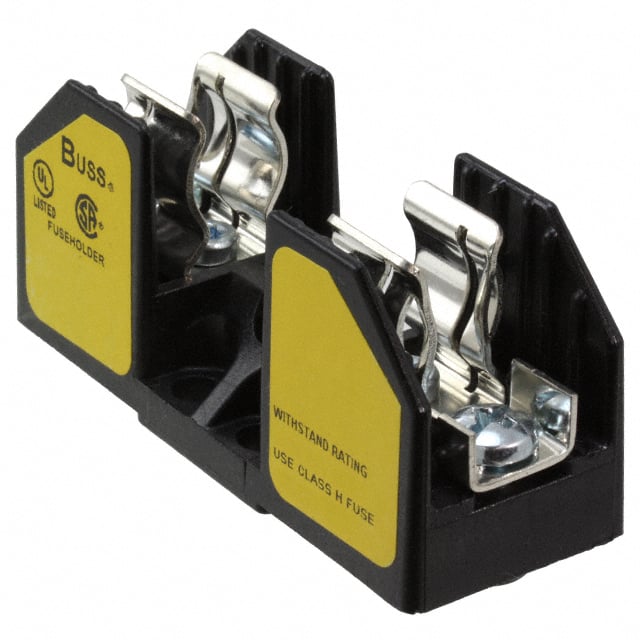

The H25030-1S Fuse Holder is a Bussmann (Eaton) Class H single-pole fuse block designed for secure mounting and protection of cartridge fuses in industrial control circuits. It provides a reliable and safe connection point for low-voltage fuse protection systems used in panels, machinery, and distribution boards.
Key Features
- Suitable for Class H cartridge fuses
- Compact single-pole fuse block design
- DIN rail or panel mounting option for easy installation
- Screw-type terminals for a strong and secure wiring connection
- High mechanical strength thermoplastic body
- Reliable contact pressure for stable electrical performance
- Suitable for industrial control and power distribution circuits
- Designed for easy fuse replacement and maintenance
Specifications
- Model: H25030-1S
- Type: Fuse Holder / Fuse Block
- Fuse Class: Class H (cartridge fuse compatible)
- Current Rating: up to 30A
- Voltage Rating: 250V AC/DC
- Number of Poles: 1 Pole
- Mounting Type: DIN rail/panel mount
- Terminal Type: Screw terminals
- Material: Thermoplastic body with metal contacts
- Wire Range: Typically 18–10 AWG
- Application: Industrial control panels, electrical distribution systems, motor control circuits, machinery protection
