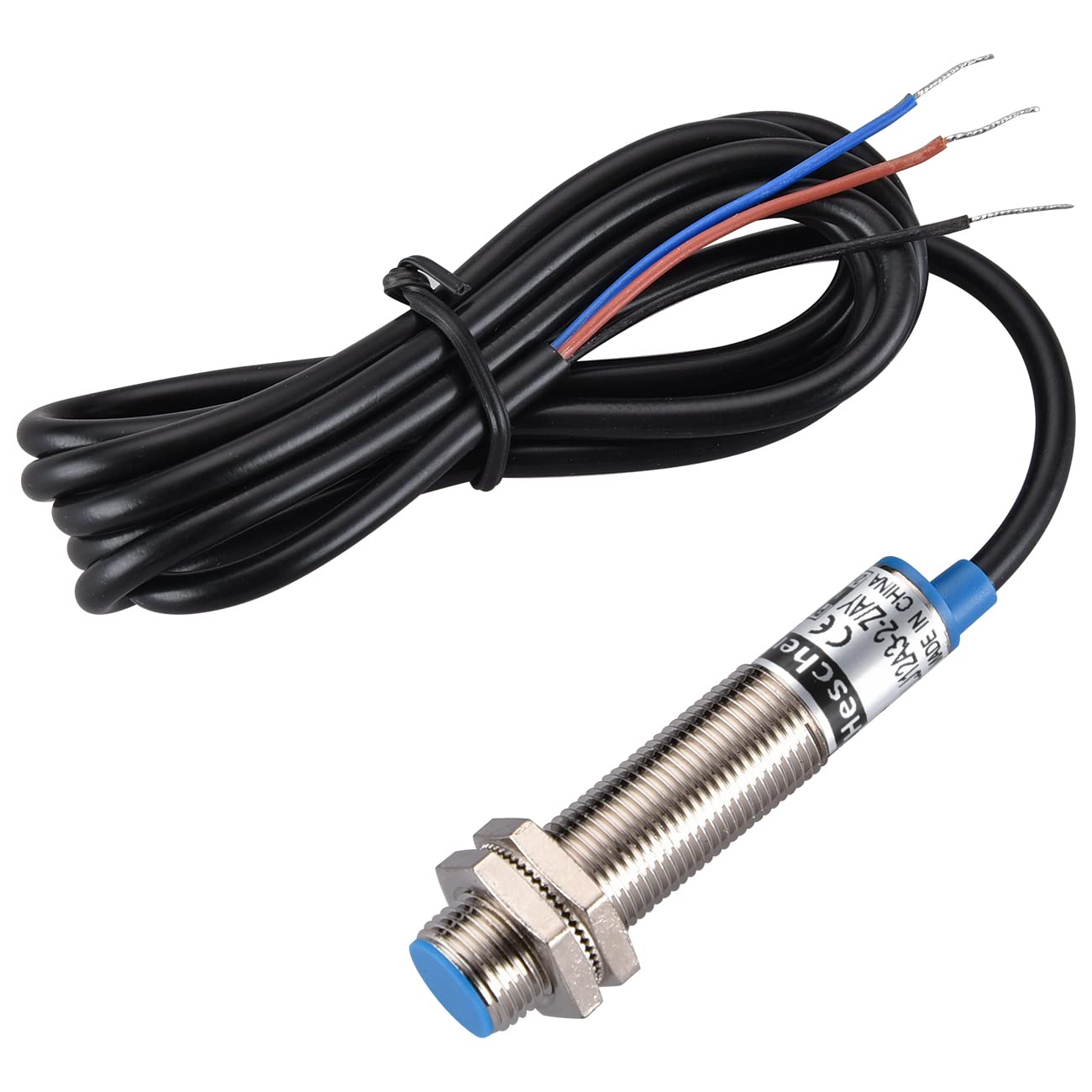

An M12 cylindrical inductive proximity sensor with a 2 mm sensing distance, designed for precise metal detection in confined industrial spaces. It features an NPN output with dual switching: Normally Open (NO) and Normally Closed (NC).
- Sensing Distance: 2 mm (flush mounting)
- Output Type: NPN, dual output (NO + NC)
- Housing Type: M12 threaded cylindrical
- Power Supply: 10–30 V DC
- Load Current: Max 200 mA
- Voltage Drop: ≤ 1.5 V
- Current Consumption: ≤ 12 mA
- Switching Frequency: Up to 800 Hz
- Indicator: Red LED for sensing status
- Cable Type: 3-wire, 2-meter PVC cable
- Housing Material: Nickel-plated brass body, plastic sensing face
- Ingress Protection: IP67 (dustproof and waterproof)
- Operating Temperature: –25°C to +70°C
- Protection Features:
- Reverse polarity protection
- Short-circuit protection
- Surge protection
- Shock Resistance: 50 g
- Vibration Resistance: 10–55 Hz, 1 mm amplitude
- Electrical Insulation:
- Insulation Resistance: ≥ 50 MΩ at 500 V DC
- Dielectric Strength: 1500 V AC for 1 minute
