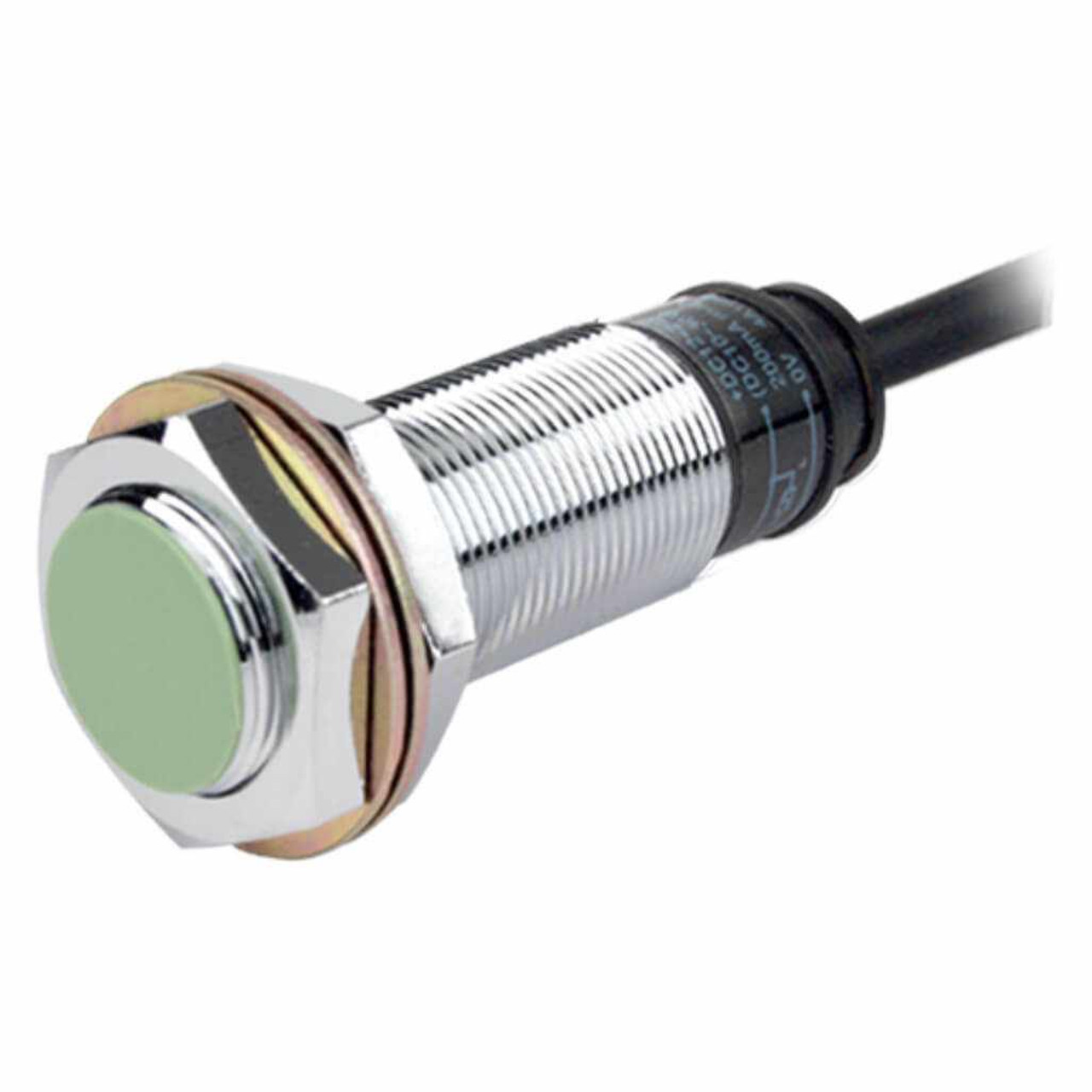

A durable M18 cylindrical inductive sensor with a 5 mm sensing range. It features NPN output with both Normally Open (NO) and Normally Closed (NC) functions, designed for accurate metal detection in industrial environments.
- Sensing Distance: 5 mm (flush mount type)
- Output Type: NPN, dual output (NO + NC)
- Supply Voltage: 10–30 V DC
- Max Load Current: 200 mA
- Voltage Drop: ≤ 1.5 V
- Current Consumption: ≤ 12 mA
- Switching Frequency: Up to 300 Hz
- Standard Target: Iron (18×18×1 mm)
- LED Indicator: Red LED shows sensing status
- Cable Type: 3-wire, 2-meter cable
- Housing Material: Nickel-plated brass body with ABS sensing face
- Protection Features:
- Reverse polarity protection
- Short-circuit protection
- Surge protection
- Ingress Protection: IP67 (dust-tight and waterproof)
- Operating Temperature: –25°C to +70°C
- Vibration Resistance: 10–55 Hz, 1 mm amplitude, 120 min per axis
- Shock Resistance: 50 g, tested on 3 axes
- Insulation Resistance: ≥ 50 MΩ (at 500 V DC)
- Dielectric Strength: 1500 V AC for 1 minute
